SikaCor® EG-5

2-pack AY-PUR top coat

SikaCor® EG-5 is a 2-pack acrylic polyurethane top coat. By adding 1 % b.w. SikaCor® PUR Accelerator (see product data sheet for more information) a fast touch and through drying will be achieved.

  • Tough elastic and hard but not brittle
  • Largely insensitive against shock and impact
  • Excellent chemical, weather and colour stability
Product Data Sheet
Show all documents

Usage

SikaCor® EG-5 can be used as a line marking paint on selflevelling and broadcasted epoxy and polyurethan resin based floors e. g. for car parks.

Advantages

  • Tough elastic and hard but not brittle
  • Largely insensitive against shock and impact
  • Excellent chemical, weather and colour stability

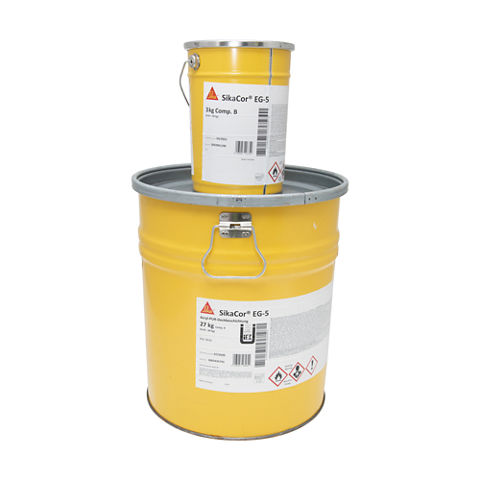

Packaging

SikaCor® EG-530 kg and 10 kg net.
Sika® Thinner EG25 l, 10 l and 3 l
SikaCor® Cleaner160 l and 25 l

Colour

RAL and NCS colour shades

Product Details

Product Information

Shelf Life

2 years

Storage Conditions

In originally sealed containers in a cool and dry environment.

Density

~1.3 kg/l
Technical Information

Thermal Resistance

Dry heat up to + 150°C, short term up to + 200°C
Damp heat up to approx. + 50°C
In case of higher temperatures please consult Sika.

An exposure to high temperatures can lead to color changes.

Chemical Resistance

Weather, water, sewage, seawater, smoke, de-icing salts, acid and lye vapours, oils, grease and short term exposure to fuels and solvents.



Application

Application Information

Mixing Ratio

Components A : B

By weight

90 : 10

By volume7.1 : 1*

*The volumetric mixing ratio may vary depending on the colour shade. Please refer to Sika, if needed.

Thinner

Sika® Thinner EG
If necessary max. 5% Sika® Thinner EG may be added to adapt the viscosity.

Product Temperature

Min. + 5°C

Relative Air Humidity

Max. 85 %, except the surface temperature is significantly higher than the dew point temperature, it shall be at least 3 K above dew point.

The surface must be dry and free from ice.

Pot Life

At + 10°C

~7 h

~5 h *

At + 20°C

~5 h

~3 h *

At + 30°C

~4 h

~2 h *

* By adding 1 % b.w. SikaCor® PUR Accelerator

Waiting Time / Overcoating

Min. until drying stage 6 is achieved

Max. unlimited

Prior to further applications possible contamination must be removed.

Drying time

Final drying time
Depending on film thickness and temperature full hardness is achieved after 1 week. Tests of the completed coating system should only be carried out after final curing.

Drying stage 6

Dry film thickness 80 μm

+ 5°C after

21 h

+ 10°C after18 h
+ 20°C after

14 h

+ 40°C after3 h
+ 80°C after45 min

By adding 1 % b.w. SikaCor® PUR Accelerator:

Dry film thickness 80 μm

0°C after

52 h

+ 5°C after18 h
+ 10°C after13 h
+ 20°C after5 h
Consumption

Consumption

Theoretical material-consumption/VOC without loss for medium dry film thickness:

Dry film thickness

60 μm80 μm
Wet film thickness100 μm130 μm
Consumption

~0.130 kg/m2

~0.170 kg/m2
VOC~33 g/m2~44 g/m2


If used as line marking paint on floors the consumption is approx. 0.20 kg/m².
Application steps

MIXING

Stir component A very thoroughly using an electric mixer (start slowly, then increase up to approx. 300 rpm). Add component B carefully and mix both components very thoroughly (including sides and bottom of the container). Mix for at least 3 minutes until a homogeneous mixture is achieved. Fill mixed material into clean container and mix again shortly as described above. During mixing and handling of the materials always wear protective goggles, suitable gloves and other protective clothings.



APPLICATION

The method of application has a major effect on achieving uniform thickness and appearance. Spray application will give the best results. The indicated dry film thickness is easily achieved by airless spray. Adding solvents reduces the sag resistance and the dry film thickness. In case of application by roller or brush, additional applications may become necessary to achieve the required coating thickness, depending on type of construction, site conditions, colour shade etc. Prior to major coating operations a test application on site may be useful to ensure the selected application method will provide the requested results.


By brush and roller

Conventional high pressure spraying:

  • Nozzle size 1.5 - 2.5 mm
  • Pressure 3 - 5 bar
  • Oil and water trap is compulsory


Airless-spraying:

  • Pressure min. 180 bar
  • Nozzle size 0.38 - 0.53 mm (0.015 - 0.021 inch)
  • Spraying angle 40° - 80°

CLEANING OF TOOLS

SikaCor® Cleaner

Spraying equipment must be rinsed with Sika® Thinner EG before using SikaCor® EG-5.
