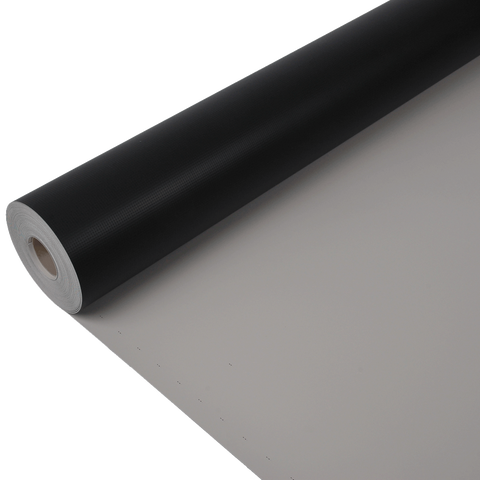

Sarnafil® TG 66-15

Sarnafil® TG 66-15

POLYMERIC MEMBRANE FOR BALLASTED ROOF WATERPROOFING

Sarnafil® TG 66-15 (thickness 1.5 mm) is a multi-layer, synthetic roof waterproofing sheet based on premiumquality flexible polyolefins (FPO), with inlay of glass
non-woven according to EN 13956.
Sarnafil® TG 66-15 is a hot air weldable, UV-resistant roof membrane, designed for use in all global climatic conditions.

▪ Proven performance over decades
▪ Resistant to micro-organisms
▪ Resistant to root penetration
▪ High dimensional stability due to glass fleece inlay
▪ Compatible to bitumen
▪ Resistant to permanent UV exposure
▪ Resistant against impact load and hail
▪ Resistant to all common environmental influences
▪ Resistant to mechanical influences
▪ Hot air welding without use of open flame
▪ Recyclable
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

Roof waterproofing membrane for roofs with ballast (e.g. gravel, concrete slabs, green roof) and / or exposed flat roofs:
▪ Loosely laid and ballasted roofs
▪ Green roofs
▪ Utility roofs
▪ Inverted roofs
Roof waterproofing membrane for exposed roof junction zones:
▪ Roof waterproofing for junctions and flashings, e.g.   wall and parapet junctions, roof lights, etc., which are   permanently exposed in installations of   Sarnafil® TG 66-15 roof waterproofing  systems with   ballast.
▪ Roof waterproofing for junctions and flashings in   installations of all types of Sarnafil® TS 77 and TG 76   Felt exposed roof waterproofing systems.

Advantages

▪ Proven performance over decades
▪ Resistant to micro-organisms
▪ Resistant to root penetration
▪ High dimensional stability due to glass fleece inlay
▪ Compatible to bitumen
▪ Resistant to permanent UV exposure
▪ Resistant against impact load and hail
▪ Resistant to all common environmental influences
▪ Resistant to mechanical influences
▪ Hot air welding without use of open flame
▪ Recyclable

Packaging

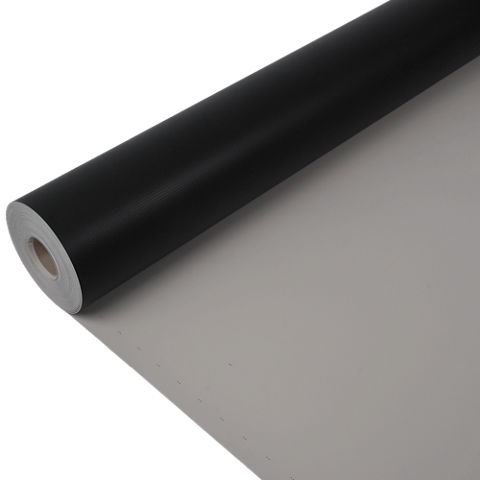

Sarnafil® TG 66-15 standard rolls are wrapped individually in a blue PE-foil.

Packing unit:see price list
Roll length:

20.00 m

Roll width:2.00 m
Roll weight:60.00 kg

Colour

Surface:matt

Colours:

Top surface:

beige

grey (nearest RAL 7040)

Bottom surface:

black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Sarnafil® TG 66-15 is designed and manufactured to meet most international recognised standards.
▪ Polymeric sheets for roof waterproofing according to

  EN 13956, certified by notified body 1213-CPD-3914

  and provided with the CE-mark.
▪ Reaction to fire according to EN 13501-1.
▪ Official Quality Approvals and Agrement

  Certificates and approvals.
▪ Monitoring and assessment by approved laborator-

  ies.
▪ Quality Management system in accordance with EN

  ISO 9001/14001.
▪ Root penetration resistance tested according to FLL-

  Test Procedure.




Product Information

Shelf Life

Product does not expire if correctly stored.

Storage Conditions

Rolls must be stored in a horizontal position on pallet and protected from direct sunlight, rain and snow. Do not stack pallets of rolls during transport or storage.

Product Declaration

EN 13956

Visible Defects

Pass

(EN 1850-2)

Length

20 m (-0 % / +5 %)

(EN 1848-2)

Width

2 m (- 0.5 % / + 1 %)

(EN 1848-2)

Effective Thickness

1.5 mm (-5 % / +10 %)

(EN 1849-2)

Straightness

≤  30 mm

(EN 1848-2)

Flatness

≤  10 mm

(EN 1848-2)

Mass per unit area

1.5 kg/m² (- 5 % / + 10 %)

(EN 1849-2)
System information

System Structure

Wide range of accessories is available e.g. prefabricated parts, roof drains, scuppers, protection sheets and separation layers.

The following accessories shall be used:

  • Sarnafil® T 66-15 D Sheet for detailing
  • Sarnafil® T Metal Sheet
  • Sarnabar
  • Sarnafil® T Welding Cord
  • Sarnafil® T Prep / Sarnafil® T Wet Task Set
  • Sarnacol® T 660
  • Solvent T 660
  • Sarnafil® T Clean

Compatibility

Sarnafil® TG 66-15 may be installed on all thermal insulations and levelling layers suitable for roofing. No additional separation layer is required.

Sarnafil® TG 66-15 is suitable for installation directly on top of existing, carefully cleaned, level bituminous roofing, e.g. re-roofing over old flat roofs.

Colour changes in membrane surface may occur in case of direct contact with bitumen.
Technical Information

Resistance to Impact

hard substrate≥  800 mm
soft substrate≥  1000 mm

Resistance to Static Load

soft substrate≥  20 kg
rigid substrate≥  20 kg

Resistance to Root Penetration

Pass

(EN 13948)

Tensile Strength

longitudinal (md)1) ≥  9 N/mm²
transversal (cmd)2)≥  7 N/mm²

Elongation

longitudinal (md)1) ≥  550 %
transversal (cmd)2)≥  550 %

Dimensional Stability

longitudinal (md)1) ≤  |0.2| %
transversal (cmd)2)≤  |0.1| %

Joint Shear Resistance

≥  500 N/50 mm

(EN 12317-2)

Foldability at Low Temperature

≤  -45 °C

(EN 495-5)

Reaction to Fire

Class E

(EN ISO 11925-2, classification to EN 13501-1)

Effect of Liquid Chemicals, Including Water

On request

(EN 1847)

Exposure to Bitumen

Pass3)

(EN 1548)

UV Exposure

Pass (> 5000 h / grade 0)

(EN 1297)

Water Tightness

Pass

(EN 1928)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

SUBSTRATE QUALITY

The substrate surface must be uniform, smooth and free of any sharp protrusions or burrs, etc.

The supporting layer must be compatible to the membrane, solvent resistant, clean, dry and free of grease and dust. Metal sheets must be degreased with Sarnafil® Cleaner before adhesive is applied.

APPLICATION

Installation works must be carried out only by Sika instructed contractors for roofing.


Installation of some ancillary products, e.g. contact adhesives / cleaners is limited to temperatures above +5 °C. Please observe information given by Product Data Sheets.




Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.
