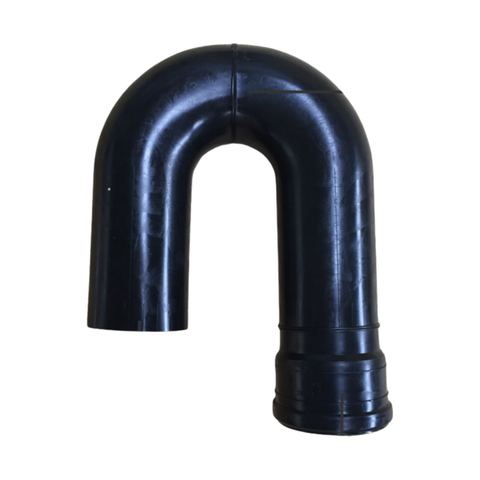

SikaRoof® Cable Duct-110
Pipe bend for cables
The SikaRoof® Cable Duct-110 is a prefabricated pipe bend with sliding socket.
- Applicable for exposed roofing
- Reliable waterproofing detail
- Ease of application
- Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Usage
SikaRoof® Cable Duct-110 is used to make the cable bushing roof penetration watertight.Advantages
- Applicable for exposed roofing
- Reliable waterproofing detail
- Ease of application
- Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Packaging
Product is packed in one carton.
Colour
| Pipe bend with sliding socket: | black |
Product Details
Chemical Base
| Pipe bend with sliding socket: | PE-HD |
| Pipe diameter: | 110 mm |
Shelf Life
5 years from date of production.
Storage Conditions
The products must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.
Dimensions
Scope of delivery:
Pipe bend 110, complete hot plate welded including sliding socket and protection lid
Unit weight
~ 0,360 kg
System Structure
The following products must be considered for use depending on roof design:
For FPO Roof:
- Sarnafil T Drain 110
- Sarnafil T Pipe Flashing V 110
For PVC Roof:
- S-Drain PVC 110
- S-Pipe Flashing PVC R 1/110
Application
Ambient Air Temperature
-20°C min. / +60°C max.
Substrate Temperature
-30°C min. / +60°C max.
APPLICATION
Fix the roof drain 110 (not included) with the spigot upwards to the roof deck. If needed, connect the vapour control layer airtight to the roof drain flange. Install the thermal insulation, the roofing membrane and the Pipe Flashing 110 (not included) according to the Sika Application manual. Insert the Pipe bend 110 with the sliding socket into the roof drain 110 spigot. Secure the Pipe flashing 110 on top with an appropriate stainless steel hose clamp (not included) and seal it additionally with a sealant, eg. Sarnaplast 2235.
