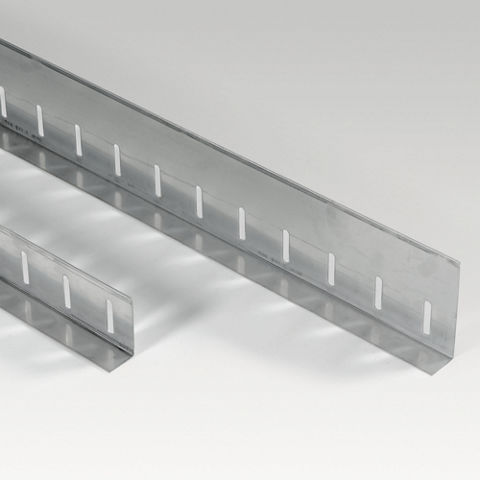

S-Gravelstop Profile

Stainless Steel (1,4301)

5 years from date of production

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Store in a horizontal position. Always refer to packaging.

The following products must be considered for use depending on roof design:

Ancillary products:

• Gravelstop PVC Inside Bracket
• S-Gravelstop PVC Outside Bracket
• Sarnafil® T Gravelstop Inside Bracket
• Sarnafil® T Gravelstop Outside Bracket

Reference must be made to further documentation where applicable, such as relevant method statement, application manual and installation or working instructions.

Weld S-Gravelstop Profile with a spacing of approximately 800 mm to the roofing membrane. Depending on the type of ballast used and site conditions, brackets may be installed with reduced or increased spacing’s. Use the correct Gravelstop Brackets for the membrane (PVC or Sarnafil® T) and requirements (inside or outside bracket). The general welding procedures of Sikaplan® and Sarnafil® apply.Clamp the S-Gravelstop Profile into the Gravelstop Brackets.
