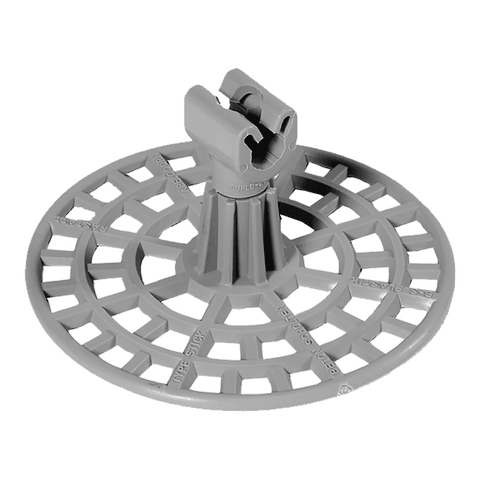

S-Lightning Conductor Clip

S-Lightning Conductor Clip

Guidance clip for lightning conductor

S-Lightning Conductor Clip is a polyamide/Nylon (PA) clip for securing lightning conductor cables to Sarnafil® and Sikaplan® roof membranes

  • Resistant to UV exposure
  • Suitable for Sarnafil® and Sikaplan® PVC and FPO flat roof systems
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Enquire about this product
Product Data Sheet Show all documents

Usage

S-Lightning Conductor Clip is used as Lightning Conductor Clip on flat roofs. Suitable for Conductor Ø 8 mm–10 mm.

Advantages

  • Resistant to UV exposure
  • Suitable for Sarnafil® and Sikaplan® PVC and FPO flat roof systems
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)

Packaging

Depending on the order quantity and product size, the products are packaged in plastic bags or in cartons.

Colour

Colour: grey

Product Details

Product Information

Chemical Base

Polyamide (PA) / Nylon

Shelf Life

5 years from date of production.

Storage Conditions

The products must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.

Dimensions

Base plate110 mm Ø
Height45 mm
System information

System Structure

The following products must be considered for use depending on roof design:

  • S-Lightning Conductor  PVC disc
  • Sarnafil® T Lightning Conductor disc
  • Sarnafil® and Sikaplan® PVC and FPO roof membranes

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

Strictly follow installation procedures as defined in method statements, application manuals and working instructions which must always be adjusted to the actual site conditions.

Refer to the relevant section in the Installation instructions: Sarnafil® and Sikaplan® flat roof systems

As a guide S-Lightning Conductor Clip is installed at ~100 cm spacing’s.
