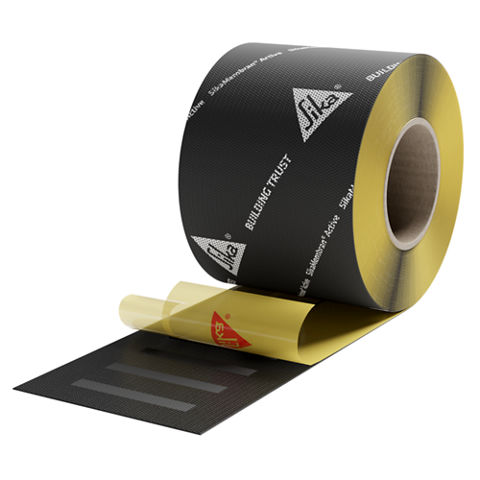

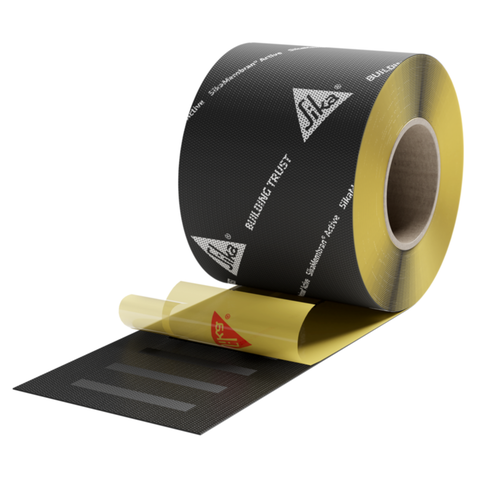

SikaMembran® Active FSB+
Fully self-adhesive connection joint membrane with variable water vapour diffusion
Fully self-adhesive high-performance membrane for interior and exterior sealing connection joints and ETICS facades with variable sd value. Complex connection details can be refinished with the system adhesive SikaBond®-444 Membrane Fix.
- Flexible, robust and ductile membrane
- Fully self-adhesive with finger lift for quick and precise installation
- Very high tack of the pressure sensitive adhesive
- Processable down to -10 °C
- Simple and safe application
- Variable sd value
- Only one membrane for indoor and outdoor applications
- Allows rapid drying of the facade construction in summer and winter
- Can be plastered-over
- Economical
Usage
- Sealing of connection joints in buildings and ETICS facades
- Sealing of hole windows and doors
- Reciprocal connection
- Suitable for smooth surfaces, e.g. planed and coated wood, many plastics and metals as well as formwork smooth concrete
Advantages
- Flexible, robust and ductile membrane
- Fully self-adhesive with finger lift for quick and precise installation
- Very high tack of the pressure sensitive adhesive
- Processable down to -10 °C
- Simple and safe application
- Variable sd value
- Only one membrane for indoor and outdoor applications
- Allows rapid drying of the facade construction in summer and winter
- Can be plastered-over
- Economical
Packaging
| Width | Length | Carton | Pallet |
| 80 mm | 25 m | 6 rolls | 64 cartons |
| 100 mm | 25 m | 6 rolls | 52 cartons |
| 150 mm | 25 m | 4 rolls | 54 cartons |
| 200 mm | 25 m | 2 rolls | 84 cartons |
| 250 mm | 25 m | 2 rolls | 60 cartons |
| 300 mm | 25 m | 2 rolls | 50 cartons |
| 350 mm | 25 m | 2 rolls | 50 cartons |
Colour
Anthracite
Product Details
Chemical Base
| Carrier fleece: | Polypropylene |
| Performance membrane: | Polyethylene copolymer |
| Pressure sensitive adhesive: | SikaMelt® |
Shelf Life
In unopened original packaging: 24 months from date of production
Storage Conditions
Storage temperature between +5 °C and +25 °C. Store in a cool and dry place. Protect from direct sunlight.
Thickness
| ~ 0.45 mm | (EN 1849-2) |
Compatibility
System adhesives
SikaBond®-444 Membrane Fix
Service Temperature
Min. -40 °C, max. +80 °C
Resistance to Water Penetration
| ~ 24.5 kPa | (Corresponds to a water column of ~ 2.45 m.) |
Equivalent Air Layer Thickness for Water Vapour
| The equivalent air layer thickness of SikaMembran® Active FSB+ varies between 0.5 m and 20 m, depending on the relative humidity. |
|
UV Exposure
| Bonded membrane: | Max. 9 months |
| Loose membrane: | Max. 2 months |
Reaction to Fire
| E | (EN 13501-1) |
Design Considerations
In order to prevent thermal bridges or condensation formation, an appropriate thermal insulation (mineral wool or similar) must be used in the joint space in addition to suitable joint sealing.
The active variability of the sd value of SikaMembran® Active FSB+ allows a tighter seal indoors in winter than outdoors with the same membrane. Thus, vapour diffusion can be maintained in winter with the proven principle: "inside denser than outside" (sd warm > sd cold).
In summer, the active variability of the sd value enables rapid and uniform drying of the building connection inwards and outwards.
Construction details should always be determined by the responsible engineer and building physicist.
Application
Ambient Air Temperature
Min. -10 °C, max. +40 °C
Substrate Temperature
Min. -10 °C, max. +40 °C
Below +5 °C, it must be ensured that the substrate is free of ice.
APPLICATION INSTRUCTIONS
For the processing of SikaMembran® Active FSB+ the general rules of architecture must be applied.
SUBSTRATE PREPARATION
The substrate must be sound, clean, dry and free of all contaminants such as dirt, oil, grease, wax, old adhesive residue and poorly bonded paint coatings which could affect adhesion.
