Product Data Sheet Show all documents

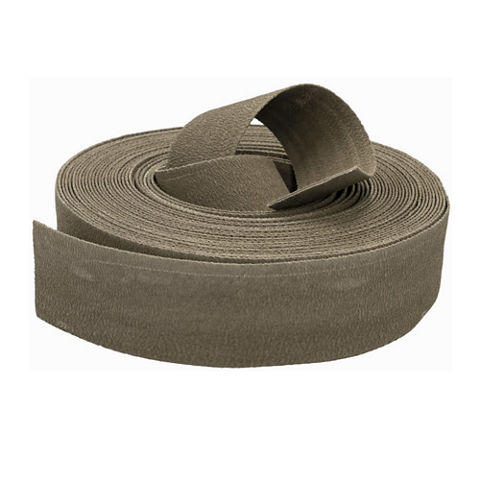

Sika Waterbar® FB-125

Bonded flexible waterstop for sealing construction joints

Sika Waterbar® FB-125 is a hybrid waterstop with a rough textured surface based on flexible polyolefin (FPO). The waterstop is placed into the fresh concrete and becomes fully embedded in the cured concrete. It provides a fully bonded, durable watertight seal, that prevents any lateral water underflow.

  • Bonded to concrete structure - no lateral water underflow
  • Permanent flexibility
  • Quick and easy to install
  • Long rolls reduce the number of joins
  • No special tools and equipment required
  • No extra recess and detailing of reinforcement
  • No obstructions for concreting
  • Fully bonded for easy repair in case of leakage
  • Resistant to all natural substances in soil and groundwater
  • Durable and robust system
  • Can be combined with other proven Sika waterproofing / joint sealing systems
Seek a stockist
Product Data Sheet Show all documents

Sika Waterbar® FB is a fully bonded flexible TPO waterstop with modified, patented surface based on A+ Technology (functional layer).

Basement construction Joints (floor – floor, floor – wall, wall – wall) with Sika Waterbar® FB-125. Can be combined with other known Sika Joint Sealing Solutions.

Advantages of Sika Waterbar FB-125

Assembly of Sika waterbar with hands applying adhesive tape
FAST INSTALLATION

Pull test for Sika waterbar showing chemical bond strength
ROBUST AND DURABLE

Illustration showing wall to slab detail with Sika waterbar in reinforced concrete
STRAIGHT FORWARD DESIGN

Illustration showing wall to slab detail with Sika waterbar and expansion joint in concrete
COMPLETE SYSTEM

Usage

It is designed to seal construction joints as an internal waterstop in watertight concrete constructions. Typical applications:
  • Underground structures and basements
  • Water retaining structures
  • Water treatment plants
  • Swimming pools
  • Reservoirs
  • Retaining walls


Advantages

  • Bonded to concrete structure - no lateral water underflow
  • Permanent flexibility
  • Quick and easy to install
  • Long rolls reduce the number of joins
  • No special tools and equipment required
  • No extra recess and detailing of reinforcement
  • No obstructions for concreting
  • Fully bonded for easy repair in case of leakage
  • Resistant to all natural substances in soil and groundwater
  • Durable and robust system
  • Can be combined with other proven Sika waterproofing / joint sealing systems

Packaging

Single roll of 50 m wrapped in foil

Colour

Light grey, rough textured surface

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Tests according to EAD 320002-02-0605, ofi, Report No. 2101089_E
Product Information

Chemical Base

Hybrid based on flexible polyolefin (FPO)

Shelf Life

36 months from date of production

Storage Conditions

Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between +5 °C and +30 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage.
Always refer to packaging.

Thickness

> 3.00 mm

(EN 1849-2)
System information

System Structure

Accessories used for fixing and installation:

  • SikaProof® Sandwich Tape-50
  • Mounting brackets
  • Clamping bar set
Technical Information

Shore A Hardness

85 ± 10 %

(DIN 53505)

Tensile Strength

≥ 6 N/mm2

(EN 12311-2)



Elongation

≥ 400 %

(EN 12311-2)

Adhesion in peel

≥ 50 N / 50 mm

(EN 1372)



Service Temperature

-10 °C min. / +40 °C max.

Water Tightness

Tight

(EN 1928, Method B)

Resistance to lateral water migration

Pass (7 bar, 7 days)

(ASTM D5385 modified)

Reaction to Fire

Class E

(EN 13501-1)
