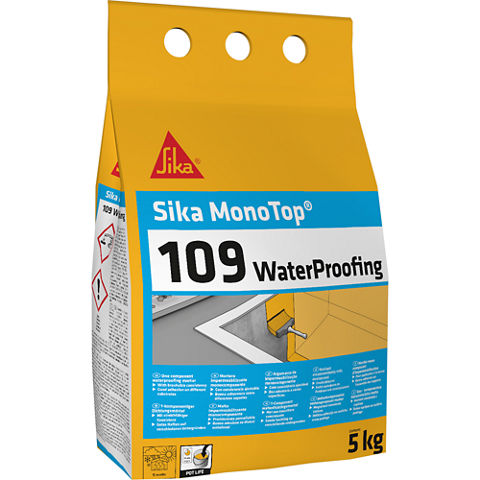

Sika MonoTop®-109 WaterProofing

Sika MonoTop®-109 WaterProofing

Cementitious mortar for localised waterproofing

Sika MonoTop®-109 WaterProofing is a one-component cement based premixed mortar with brushable consistency.

  • One-component product, just add water
  • Good adhesion on various substrates
  • Easy and fast application by brush
  • Applicable directly on brick, concrete and foundations made of stone blocks
Ask for a quote
Product Data Sheet Show all documents

Usage

Sika MonoTop®-109 WaterProofing is particularly designed for waterproofing projects with manageable size such as basement walls, small ponds or tanks and below-ground structures.

Advantages

  • One-component product, just add water
  • Good adhesion on various substrates
  • Easy and fast application by brush
  • Applicable directly on brick, concrete and foundations made of stone blocks

Packaging

5 kg aluminium bag packed in a cardboard box containing 4 units

Colour

Grey powder

Product Details

Product Information

Chemical Base

Cement binder

Shelf Life

15 months

Storage Conditions

Store properly in undamaged original sealed packaging, in dry cool conditions.

Density

Bulk

~1.25 kg/l

Fresh mortar

~2.10 kg/l
Technical Information

Tensile Adhesion Strength

~0.5 MPa

(EN 1542)

Water Penetration under Pressure

No water penetration (1.5 bar for 7 days)(EN 14891, A.7)

Water Penetration under Negative Pressure

No water penetration (2.50 bar for 72 hours)(UNI 8298-8)

Application

Application Information

Mixing Ratio

1.25 liter of water per bag of 5 kg (25 % water)

Layer Thickness

3 mm with constant thickness, applied in minimum 2 layers

Ambient Air Temperature

+5 °C minimum / +35 °C maximum

Substrate Temperature

+5 °C minimum / +35 °C maximum

Pot Life

~45 min at +20 °C

Waiting Time / Overcoating

7 days (at +23 °C and R.H. 50 %) for full service
Consumption

Consumption

~1.5 kg / m2 per mm of thickness
Application steps

MIXING

Pour the water in the correct proportion into a suitable mixing container. Slowly add the powder and mix at least 3 minutes until achieving a homogenous consistency.

APPLICATION

The product can be applied with a stiff bristled brush, glue brushes, spatula or smooth trowel in 2 or 3 layers.

To ensure a good penetration and bonding onto substrate, the first coat must be applied by brush.

The subsequent layer or layers can be applied either by brush (subsequent layers must be applied crosswise) or spatula when the previous one has sufficiently dried (approx. 4–6 hours) and no later than 12 hours. In any case, the thickness should not exceed 4 mm.

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use.

Hardened material can only be mechanically removed.
