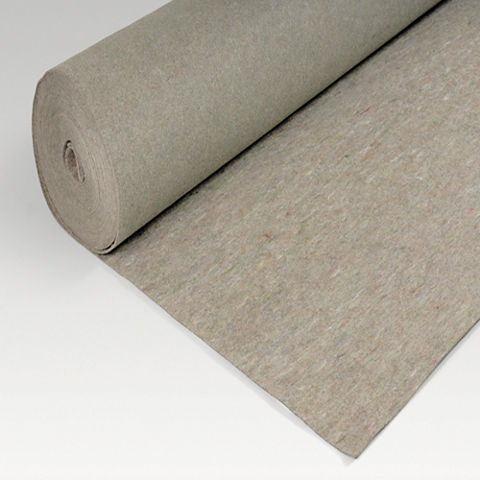

S-Felt S-800

S-Felt S-800

Polypropylene levelling layer

S-Felt S-800 is a levelling-layer made of polypropylene (PP).

  • Bitumen resistant
  • Easily applied
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

  • Levelling layer between Sarnafil® or Sikaplan® membranes and rough surfaces.


Advantages

  • Bitumen resistant
  • Easily applied
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)

Packaging

Rolls wrapped individually in a black PE-foil.

Length

25,00 m

Width

2,00 m

Weight

40,00 kg

Colour

Surface

Structured

Colour

Multi-coloured




Product Details

Product Information

Chemical Base

100 % polypropylene (PP)

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +30 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Length

25,00 m

Width

2,00 m (±2 %)

Thickness

4,3 mm (±10 %)

(EN 9863)

Mass per unit area

800 g/m2 (±10 %)

(EN 9864)
System information

System Structure

The following products must be considered for use depending on roof design:

  • All types of Sarnafil® and Sikaplan® membranes
  • Sarnacol®-2170
  • Sarnacol® T-660
Technical Information

Tensile Strength

longitudinal

≥ 1000 N/50 mm

transversal

≥ 1700 N/50 mm

Elongation

longitudinal≥ 50 %

transversal

≥ 60 %

Reaction to Fire

Class E

(EN 13501-1)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

S-Felt S-800 is loose laid accordance with installation instructions: Sarnafil® and Sikaplan®.

If necessary S-Felt S-800 can be spot bonded to the substrate with Sarnacol®-2170 or Sarnacol® T-660.

Adjoining sheets must overlap at least 50 mm.
