S-Felt GK-400

S-Felt GK-400

Polypropylene protection and slip layer

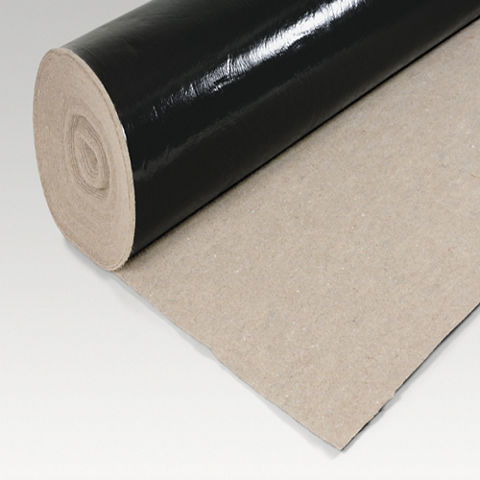

S-Felt GK-400 is a protection and slip layer made of polypropylene (PP) with a polyethylene (PE) coating on one side.

  • Bitumen resistant
  • Acids resistant (pH 2,4)
  • Easily applied
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

  • Protective and slip-layer beneath paving or poured cementitious toppings.


Advantages

  • Bitumen resistant
  • Acids resistant (pH 2,4)
  • Easily applied
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)

Packaging

Wrapped individually in black PE-foil.

Roll length

50,00 m

Roll width

2,00 m

Roll weight

40,00 kg

Colour

SurfacesStructured and smooth

Colours

Multi-coloured/black

Product Details

Product Information

Chemical Base

100 % polypropylene (PP) (foil PE)

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +30 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Length

50,00 m

Width

2,00 m (+/-2 %)

Thickness

2,7 mm (+/- 10 %)

(EN 9863)

Mass per unit area

400 g/m2 (+/- 10 %)

(EN 9864)
System information

System Structure

The following products must be considered for use depending on roof design:

  • All types of Sarnafil® and Sikaplan® membranes
  • Sarnacol®-2170
  • Sarnacol® T-660
Technical Information

Tensile Strength

longitudinal≥  360 N/50 mm
transversal≥  480 N/50 mm

Elongation

longitudinal≤  110 %
transversal≤  120 %

Reaction to Fire

Class E

(EN 13501-1)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

S-Felt GK-400 is loose laid accordance with installation instructions: Sarnafil® and Sikaplan®.

If necessary S-Felt GK-400 can be spot bonded to the substrate with Sarnacol®-2170 or Sarnacol® T-660.

Adjoining sheets must overlap at least 50 mm.

When pouring a cementitious topping over PE coated S-Felt GK-400, either tape seams tightly or use wider laps, to ensure cement slurry is prevented from penetrating the felt layer at the seams.
