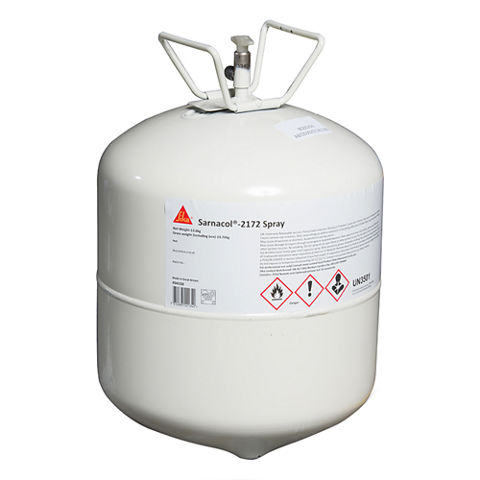

Sarnacol®-2172 Spray
Sarnacol®-2172 Spray is a 1-part, polyurethane based, moisture‐curing, spray applied contact adhesive in a pressurised canister system.
- Quick adhesive applications using pressurised canister and spray gun
- Less wastage of adhesive due to pressurised container
Usage
- Sprayable adhesive to bond Sarnafil G membranes to specific substrates
Advantages
- Quick adhesive applications using pressurised canister and spray gun
- Less wastage of adhesive due to pressurised container
Packaging
Packaging unit | Single canister 19,4 kg (Adhesive 13,3 kg) |
Packaging dimension | Cardboard box 320 mm × 320 mm × 460 mm |
| | |
Refer to current price list for packaging variations
Colour
Colour | red |
Product Details
Chemical Base
Polyurethane moisture‐curing
Shelf Life
12 months from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +25 °C. Always refer to packaging.
Consistency
liquid
Compatibility
Not compatible in direct contact with EPS/XPS insulation boards, copper plate, bituminous substrates, waterproofing membranes (thermoplastics / elastomers) excluding soft PVC. These materials could adversely affect the product properties
Application
Ambient Air Temperature
At least +5 °C
Substrate Temperature
At least +5 °C
Open Time
Temperature | Open Time Tgel |
+30 °C | 10 minutes |
+20 °C | 20 minutes |
+10 °C | 30 minutes |
+5 °C | 40 minutes |
These times may vary due to ambient conditions.
Consumption
~150 g/m2 – 200 g/m2 on non-porous substrates
~400 g/m2 on porous substrates
One single canister covers ~80–100 m2.
These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level or wastage etc.
SUBSTRATE QUALITY
The supporting structure must be of sufficient structural strength to apply all new and existing layers of the roof build up. Complete roof system must be designed and secured against wind uplift loadings. The substrates must be solvent resistant, uniform, firm, clean, dry, free of grease, bitumen, oil, dust and loosely adhering particles. Sheet metal must be cleaned with Sarna Cleaner before adhesive is applied.
SUBSTRATE PREPARATION
Use the appropriate preparation equipment to achieve the required substrate quality
APPLICATION
Strictly follow membrane installation procedures as defined in method statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
Canister and spray-gun set-up
Nathalie insert images and text for Canister and spray-gun set-up here not in 'Maintenance' attribute.
Sarnafil® G 410‐ Membrane (Contact bonding)
- Spray apply 1 coat of Sarnacol®-2172 Spray directly onto the substrate as a priming coat. Allow to dry completely. Apply 2 coats of adhesive on absorbent substrates. Prime only the area of the roofing where the membrane will be applied on the same day.
- Lay out Sarnafil® G 410, align and fold back to approximately half its length.
- Spray apply Sarnacol®-2172 Spray evenly on the underside of the membrane.
- When the adhesive surface has become ‘tacky’, carefully fold back Sarnafil® G 410 onto the substrate. Press down firmly on the membrane using a suitable pressure roller such as a water-filled, or heavy steel roller 40–50 kg.
- Fold back the second half of the membrane and repeat as above.
Sarnafil® G 410‐ Felt backed membrane (Wet bonding)
- Spray apply 1 coat of Sarnacol®-2172 Spray directly onto the substrate as a priming coat. Allow to dry completely. Apply 2 coats of adhesive on absorbent substrates. Prime only the area of the roofing where the membrane will be applied on the same day.
- Lay out Sarnafil® G 410 Felt, align and fold back to approximately half its length.
- Spray apply Sarnacol®-2172 Spray evenly on the underside of the membrane.
- While the adhesive surface is still wet, carefully fold back Sarnafil® G 410 onto the substrate. Press down firmly on the membrane using a suitable pressure roller such as a water-filled, or heavy steel roller 40–50 kg.
- Fold back the second half of the membrane and repeat as above.
CLEANING OF TOOLS
Tools and equipment must be cleaned with Sika Boom® Cleaner immediately after use. Purge the adhesive through the hose & application gun (approx. 250 ml) as necessary before and after use.
