SikaShield® Cable Duct CR

SikaShield® Cable Duct CR

Pipe bend for cables used with bituminous roof systems

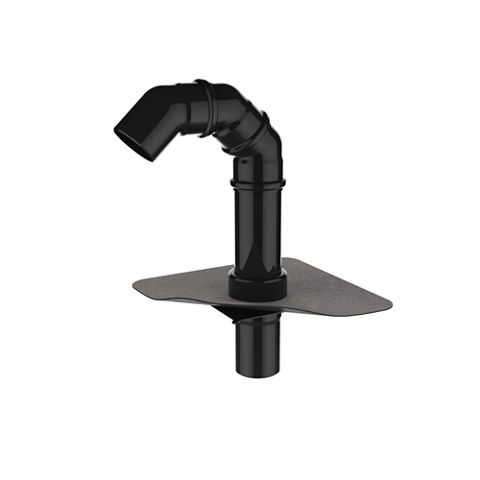

SikaShield® Cable Duct CR is a rigid PVC prefabricated pipe bend used as a cable entry on bituminous roof systems.

  • Resistant to UV exposure
  • Easily connected over roof penetration
  • Product is supplied with integrated welding tap
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

The Product is used for:
  • Providing a watertight cable bushing detail on exposed roofs
Please note:
  • The Product may only be used by experienced professionals.
  • The use of the Product is limited to geographical locations with average monthly minimum temperatures of -50 °C. Permanent ambient temperature during use is limited to +50 °C.


Advantages

  • Resistant to UV exposure
  • Easily connected over roof penetration
  • Product is supplied with integrated welding tap

Packaging

Packed in transparent plastic bag.

Refer to the current price list for available packaging variations.

Colour

Colour

black

Product Details

Product Information

Chemical Base

Pipe

Rigid PVC

Welding tab

Polymer modified bitumen (SBS)

Shelf Life

5 years from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5°C and +30°C. Always refer to packaging.

Dimensions

Type

Pipe outside Ø

Total height above waterproofing layer

Pipe length below waterproofing layer

DN 70

75 mm

480 mm

200 mm

DN 100

110 mm

520 mm

200 mm

DN 125

125 mm

545 mm

200 mm

DN 150 XL

160 mm

610 mm

300 mm

Other dimensions on request
System information

System Structure

The following products must be considered for use depending on roof design:

  • SikaShield® bituminous roofing membranes

Compatibility

With all SikaShield® bituminous roofing membranes

Application

Application Information

Ambient Air Temperature

Maximum

+60°C

Minimum

-20°C

Substrate Temperature

Maximum

+60°C

Minimum

-30°C
Application steps

APPLICATION

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.

IMPORTANT

Application by trained personnel

The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.

For application information refer to installation instructions: SikaShield® roof waterproofing membranes. The Product must be fastened securely to the roof deck.

Application below +5 °C

Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.

Note: Installation of ancillary products, such as contact adhesives or cleaners is limited to temperatures above +5 °C. Refer to relevant Product Data Sheets for further information.
