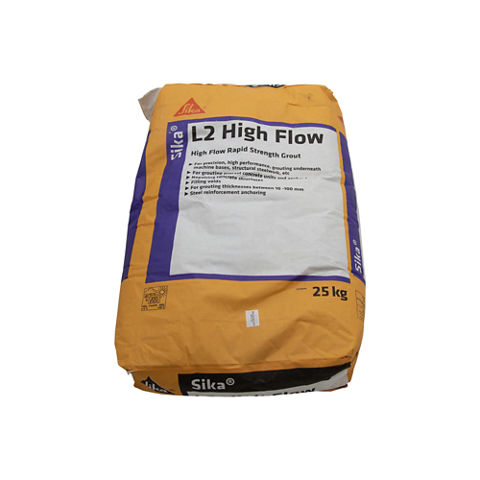

Sika® Armorex L2 High Flow

Meets the requirements of BS EN 1504-6

Cement, selected fillers and aggregates, special additives

9 months

Store properly in dry conditions in undamaged and unopened original sealed packaging

~ 2180 kg/m³ (wet density)

1.0 mm

Compressive Strength tested to BS 1881:Part 116:1983 - ambient temperature +20°C

~29 GPa

Ambient temperature +20°C

Ambient temperature +20°C

Ultimate Anchorage Bond Strength

6.7 MPa

10 mm min. / 100mm max

Flow cone test

Efflux times at fluid consistency

+5°C min. / +25°C max.

+5°C min. / +25°C max.

25 kg yields 13.5 litres of fluid grout

1850 kg yields 1m³ of fluid grout

Measure the appropriate amount of water to achieve the desired grout consistency given in the table below. Heat water if necessary to achieve a temperature between 15-20^oC.

Water addition per 25kg bag

Place the water into a forced action grout mixer or in a clean drum. Slowly add complete bag of Sika® Armorex® L2 High Flow into the water and continuously mix for 3 minutes in mixer to achieve a uniform and lump free consistency. Alternatively use a slow speed drill (200-500 rpm) and helical mixer. Dependent on the desired consistency and flow properties, the mixing ratio can be adjusted.

Immediately after mixing, pour the mixed grout into the header box/hopper ensuring continuous grout flow during the complete grouting operation to avoid trapping air. Use steel banding or chains to assist flow where necessary. For large volume placement, grout pumps are recommended.

After the grout has initially hardened, remove formwork and trim edges while concrete is ‘green’. Cure all exposed grout surfaces using Sikafloor® ProSeal. In cold weather apply heat blankets to maintain a constant temperature.

Clean all tools and application equipment with water immediately after use. Hardened/cured material can only be mechanically removed.
