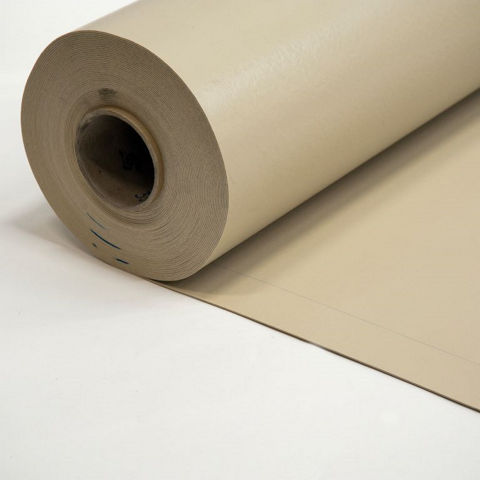

Sikaplan® SGmA-15

Sikaplan® SGmA-15

Polymeric membrane for ballasted roof waterproofing

Sikaplan® SGmA-15 is a multi-layer, synthetic roof waterproofing sheet based on premium-quality polyvinyl chloride (PVC) with inlay of glass non-woven according to EN 13956.

  • High dimensional stability due to glass fleece inlay
  • High water vapour permeability
  • Resistant to all common environmental influences
  • Resistant to mechanical influences
  • Resistant to micro-organisms
  • Resistant to root penetration
  • Hot air welding without use of open flames
  • Specially formulated for below grade applications, in-cluding plaza decks, planters, foundations, balconies, terraces and split slab applications.
  • Recyclable
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

Roof waterproofing membrane for roofs with ballast (e.g. gravel, concrete slabs, green roof (intensive, extensive), terraces with pedestrian traffic):
  • Loose laid with ballast.
  • Green roofs.
  • Utility roofs.


Advantages

  • High dimensional stability due to glass fleece inlay
  • High water vapour permeability
  • Resistant to all common environmental influences
  • Resistant to mechanical influences
  • Resistant to micro-organisms
  • Resistant to root penetration
  • Hot air welding without use of open flames
  • Specially formulated for below grade applications, in-cluding plaza decks, planters, foundations, balconies, terraces and split slab applications.
  • Recyclable

Packaging

Packing unit:

see price list

see price list

Roll length:

15.00 m

20.00 m

Roll width:

2.00 m

2.00 m

Roll weight:57.00 kg76.00 kg

Colour

Surface:slightly structured

Colours:

Top surface:

beige
Bottom surface:beige

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Polymeric sheets for roof waterproofing according to EN 13956, certified by notified body 1213-CPD-4125 and provided with the CE marking.
  • Reaction to fire according to EN 13501-1.
  • Root penetration resistance tested according to FLL-Test Procedure.
  • Official Quality Approvals and Agrement Certificates and approvals.
  • Monitoring and assessment by approved laboratories.
  • Quality Management system in accordance with EN ISO 9001/14001.
  • Production according to Responsible Care policy of Chemical Industry.
Product Information

Shelf Life

5 years from date of production in unopened, undamaged and original packaging.

Storage Conditions

Rolls must be stored between +5 °C and +30 °C in a horizontal position on pallet, protected from direct sunlight, rain and snow. Do not stack pallets of rolls or any other material during transport or storage.

Product Declaration

EN 13956

Visible Defects

Pass

(EN 1850-2)

Length

15.00 / 20.00 m (-0 % / +5 %)

(EN 1848-2)

Width

2.00 m (-0.5 % / +1 %)

(EN 1848-2)

Effective Thickness

1.5 mm (-5 % / +10 %)

(EN 1849-2)

Straightness

≤ 30 mm

(EN 1848-2)

Flatness

≤ 10 mm

(EN 1848-2)

Mass per unit area

1.9 kg/m² (-5 % / +10 %)

(EN 1849-2)
System information

System Structure

The following accessories shall be used:

  • Sikaplan® D-18 unreinforced sheet for detailing
  • Sikaplan® S-15 unreinforced sheet for detailing
  • Sikaplan® SG-15 or Sikaplan® G-15 roofing sheet for exposed connections and flashings
  • Moulded corner pieces, prefabricated corners and pipe flashings
  • Sika-Trocal® Metal Sheet Type S
  • Sika-Trocal® Cleaner-2000
  • Sika-Trocal® Cleaner L-100
  • Sika-Trocal® Welding Agent
  • Sika-Trocal® Seam Sealant
  • Sika-Trocal® C-733 (Contact adhesive)

Compatibility

Not compatible with direct contact to other plastics, e.g. EPS, XPS, PUR, PIR, PF. Not resistant to tar, bitumen, oil and solvent containing materials.
Technical Information

Resistance to Impact

hard substrate

≥ 600 mm

soft substrate

≥ 1000 mm

Resistance to Static Load

soft substrate

≥ 20 kg

rigid substrate

≥ 20 kg

Resistance to Root Penetration

Pass

(EN 13948)

Tensile Strength

longitudinal (md)1)

≥ 9.5 N/mm²

transversal (cmd)2)

≥ 8.5 N/mm²

1) md = machine direction
2) cmd = cross machine direction

Elongation

longitudinal (md)1)

≥ 200 %

transversal (cmd)2)

≥ 200 %

1) md = machine direction
2) cmd = cross machine direction

Dimensional Stability

longitudinal (md)1)

≤ |0.3| %

transversal (cmd)2)

≤ |0.3| %

1) md = machine direction
2) cmd = cross machine direction

Joint Shear Resistance

≥ 500 N/50 mm

(EN 12317-2)

Foldability at Low Temperature

≤ -25 °C

(EN 495-5)

Reaction to Fire

Class E

(EN ISO 11925-2, classification to EN 13501-1)

Effect of Liquid Chemicals, Including Water

On request

(EN 1847)

UV Exposure

Not resistant for permanent exposure to UV irradiation.

Water Tightness

Pass

(EN 1928)

Application

Application Information

Ambient Air Temperature

-15 °C min. / +60 °C max. for hot air welding
+5 °C min. / +60 °C max. for solvent welding

Substrate Temperature

-25 °C min. / +60 °C max. for hot air welding
+5 °C min. / +60 °C max. for solvent welding
Application steps

SUBSTRATE QUALITY

The substrate surface must be uniform, smooth and free of any sharp protrusions or burrs, etc.
Sikaplan® SGmA-15 must be separated from any incompatible substrates by an effective separation layer to prevent accelerated ageing.

APPLICATION

Installation works must be carried out only by Sika instructed contractors for roofing.
Installation of some ancillary products, e.g. contact adhesives/thinners is limited to temperatures above +5 °C. Please refer to the respective Product Data Sheets. Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.
