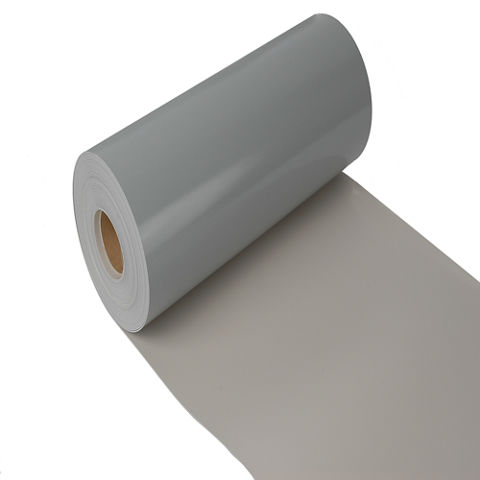

Sarnafil® T 66-15 D

Sarnafil® T 66-15 D

Polymeric detailing sheet for Sarnafil® T roof waterproofing membranes

Sarnafil® T 66-15 D is an unreinforced multi-layer, synthetic roof waterproofing sheet based on flexible polyolefins (FPO). Sarnafil® T 66-15 D is a hot air weldable, UV-resistant roof detailing membrane.

  • Resistant to permanent UV exposure
  • Resistant to most common environmental influences
  • Resistant to micro organisms
  • Resistant to old bitumen
  • Hot air welding without use of open flame
  • Can be applied on either side as both surfaces have a different colour
  • Recyclable (Delete if recycling facilities or recycling offerings for roofing membranes are not available in local country)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

Detailing sheet for Sarnafil® T roof waterproofing membranes:
  • Welded to the installed Sarnafil® T roof waterproofing membranes


Advantages

  • Resistant to permanent UV exposure
  • Resistant to most common environmental influences
  • Resistant to micro organisms
  • Resistant to old bitumen
  • Hot air welding without use of open flame
  • Can be applied on either side as both surfaces have a different colour
  • Recyclable (Delete if recycling facilities or recycling offerings for roofing membranes are not available in local country)

Packaging

Sarnafil® T 66-15 D rolls are wrapped individually in blue PE-foil.

Packing unit

see price list

Roll length

20,00 m

Roll width

0,50 m

Roll weight15,00 kg

Colour

Surface

matt

Colours

Top surface

beige

grey (nearest RAL 7040)

Bottom surface

beige

grey (nearest RAL 7040)

other colour on request

Product Details

Product Information

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +30 °C. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Visible Defects

Pass

(EN 1850-2)

Length

20,00 m (-0 % / +5 %)

(EN 1848-2)

Width

0,50 m (-0,5 % / +1 %)

(EN 1848-2)

Effective Thickness

1,5 mm (-5 % / +10 %)

(EN 1849-2)

Mass per unit area

1,5 kg/m2 (-5 % / +10 %)

(EN 1849-2)
System information

System Structure

The following products must be considered for use depending on roof design:

  • Sarnafil® T Metal Sheet
  • Sarnabar
  • Sarnafil® T Welding Cord
  • Sarnafil® T Prep / Sarnafil® T Wet Task Set
  • Sarnacol® T 660
  • Solvent T 660
  • Sarnafil® T Clean

Compatibility

Sarnafil® T 66-15 D may be installed on all thermal insulation types and levelling layers suitable for roofing. No additional separation layer is required. A fire protection layer maybe necessary. Sarnafil® T 66-15 D is suitable for installation directly on top of existing, cleaned, level bituminous roofing, e.g. re-roofing over old flat roofs. Colour changes in membrane surface may occur if in direct contact with bitumen. If existing roof build up needs to be removed, Sarnafil® T 66-15 D can be adhered directly on to the bituminous vapour control layer for partitioning and protection of the day work.
Technical Information

Flexibility at low Temperature

≤  -30 °C

(EN 495-5)

Reaction to Fire

Class E

(EN ISO 11925-2, classification to EN 13501-1)

Effect of Liquid Chemicals, Including Water

On request

(EN 1847)

Exposure to Bitumen

Pass1)

(EN 1548)

1) Sarnafil® T is compatible to old bitumen

UV Exposure

Pass (> 5000 h / grade 0)

(EN 1297)

Water Tightness

Pass

(EN 1928)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

EQUIPMENT

Hot welding overlap seams

Electric hot air welding equipment, such as hand held manual hot air welding equipment and pressure rollers or automatic hot air welding machines with controlled hot air temperature capability of a minimum 600 °C.

Recommended type of equipment:

Manual: Leister Triac

Automatic : Sarnamatic 661/681

Semi-automatic: Leister Triac Drive

SUBSTRATE QUALITY

The substrate surface must be uniform, smooth and free of any sharp protrusions or burrs, etc. The supporting layer must be compatible to the membrane, solvent resistant, clean, dry and free of grease and dust. Metal sheets must be degreased with Sarnafil® Cleaner before adhesive is applied.

APPLICATION

Installation procedure

Strictly follow installation procedures as defined in method statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
Reference must be made to the Installation Instructions: Sarnafil® T roof systems.


Fixing Method
Perimeter mechanical fixing:

Sarnabar including Sarnafil® T Welding Cord which must be used to keep the membrane in place.

Adhered roof junction areas and flashings:
Sarnafil® T 66-15 D is adhered to substrate layers such as concrete, render, timber panels, metal sheets, etc. use contact adhesive Sarnacol® T 660.

Overlap seams:

Seams are hot welded using specialised hot air equipment. The effective width of welded overlaps must be a minimum of 20 mm.


Hot welding method

Overlap seams must be welded by electric hot welding equipment. Welding parameters including temperature, machine speed, air flow, pressure and machine settings must be evaluated, adapted and checked on site according to the type of equipment and the climatic conditions prior to welding.

Testing overlap seams

The seams must be mechanically tested with screw driver or steel needle to ensure the integrity/completion of the weld. Any imperfections must be rectified by hot air welding.
