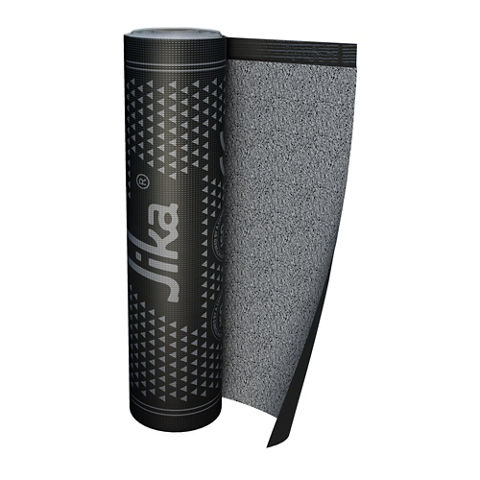

SikaShield® E79 MG SA 4 mm

Self-adhesive bituminous membrane surfaced with granules and flexible at -25 °C

SikaShield® E79 MG SA 4 mm is an SBS modified bituminous roof waterproofing membrane with a thickness of 4 mm. It is reinforced with a dimensionally stable composite inlay of a fiberglass matt compressed between two layers of non-woven spunbond polyetser fabric and is flexible at -25 °C. The top surface is coated with mineral granules, which allows the permanent exposure to UV radiation. The underside of the product has a burn-off film for easy torch-application.

  • Flame-free application
  • Highly flexible in cold temperatures
  • High adhesion in cold temperatures
  • Fully bonded
  • High durability
  • Fast and easy installation
  • Good adhesion in cold temperatures
  • Very good mechanical properties (tensile, tear, shear)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

The Product is used as a waterproofing membrane for:
  • Balconies and terraces
  • Flat or sloped roofs with up to 15 % gradient
  • Exposed single-layer or as a top sheet in a multi-layer roofing system


Advantages

  • Flame-free application
  • Highly flexible in cold temperatures
  • High adhesion in cold temperatures
  • Fully bonded
  • High durability
  • Fast and easy installation
  • Good adhesion in cold temperatures
  • Very good mechanical properties (tensile, tear, shear)

Packaging

Roll width

1.0 m

Roll length

6.0 m

Refer to the current price list for available packaging variations.

Colour

Top surface

Mineral Granules

Bottom Surface

Removable foil

Top layer colour

Refer to current price list for color variations

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE marking and declaration of performance based on EN 13707:2004+A2:2009 Flexible sheets for waterproofing — Reinforced bitumen sheets for roof waterproofing — Definitions and characteristics

  • BBA Certified (19/5716)
Product Information

Chemical Base

Composition

SBS modified bitumen

Reinforcing material

Composite inlay of a fibreglass matt compressed between two layers of non-woven spunbond polyester fabric

Shelf Life

12 months from date of production



Storage Conditions

The Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between +5 °C and +35 °C. Store in a vertical position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.



Effective Thickness

Effective thickness

4.0 mm ± 0.2 mm
Technical Information

Resistance to Tearing (nail shank)

Longitudinal (MD)

250 N ± 75 N

Transversal (CMD)

250 N ± 75 N

Joint Shear Resistance

Longitudinal (MD)

650 N/50 mm ± 130 N/50 mm

Transversal (CMD)

550 N/50 mm ± 110 N/50 mm

Flexibility at low temperature

≤ -25 °C

(EN 1109)

Water Tightness

Method B, 24 hours at 60 kPa

Pass

Reaction to Fire

Class E

(EN 13501-1)

Application

Application Information

Dew Point

The substrate temperature must be at least +3 °C above dew point to reduce the risk of condensation decreasing adhesion.

Ambient Air Temperature

Maximum

+40 °C

Minimum

+5 °C

Relative Air Humidity

Maximum

80 %

Substrate Temperature

Maximum

+40 °C

Minimum

+5 °C
Application steps

APPLICATION INSTRUCTIONS

Please refer to the SikaShield® Installation Guide
