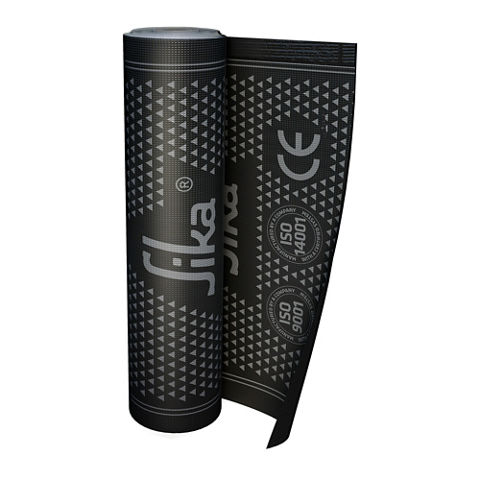

SikaShield® P55 PE RT 4 mm

SikaShield® P55 PE RT 4 mm

Anti-root plastomeric bituminous membrane surfaced with PE foil and flexible at -15 °C

SikaShield® P55 PE RT 4 mm is an APP modified bituminous waterproofing membrane with a thickness of 4 mm. It contains an anti-root additive, which allows the membrane to be in direct contact with the soil. It is reinforced with a non-woven polyester fabric dimensionally stabilised with glass fibre and is flexible at -15 °C. The top surface is coated with a polyethylene foil, which ensures the bond of the overlying layer. The underside of the product has a burn-off film for easy torch-application.

  • Good resistance to root penetration
  • Good resistance to humic acids and fertilizers
  • Resistant to aggressive mediums in natural ground water and soil
  • Good durability
  • Fully bonded
  • Easy to install by torching method
  • Good mechanical properties (tensile, tear, shear)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

The Product is used as a waterproofing membrane for:
  • Flat and sloping roofs under protective layers or ballast
  • Inverted roofs
  • Roof gardens
  • Roof garden with final waterproofing layer in contact with soil
Please note:
  • The Product is not suitable for roofs permanently exposed to UV radiation.


Advantages

  • Good resistance to root penetration
  • Good resistance to humic acids and fertilizers
  • Resistant to aggressive mediums in natural ground water and soil
  • Good durability
  • Fully bonded
  • Easy to install by torching method
  • Good mechanical properties (tensile, tear, shear)

Packaging

Roll width

1.0 m

Roll length

8.00 m ± 0.08 m

Refer to current price list for packaging variations.

Colour

Top surface

Polyethylene film

Bottom surface

Polyethylene film

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE marking and declaration of performance based on EN 13707:2004+A2:2009 Flexible sheets for waterproofing — Reinforced bitumen sheets for roof waterproofing — Definitions and characteristics

  • BBA Certified (19/5716)
Product Information

Chemical Base

Composition

APP modified bitumen with anti-root additive

Reinforcing material

non-woven polyester fabric dimensionally stabilised with glass fibre

Shelf Life

36 months from date of production



Storage Conditions

The Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between +5 °C and +35 °C. Store in a vertical position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Effective Thickness

Effective thickness

4.0 mm ± 0.2 mm
Technical Information

Resistance to Tearing (nail shank)

Longitudinal (MD)

150 N ± 45 N

Transversal (CMD)

180 N ± 35 N

Joint Shear Resistance

Longitudinal

550 N/50 mm ± 110 N/50 mm

Transversal

300 N/50 mm ± 60 N/50 mm

Flexibility at low temperature

≤ -15 °C

(EN 1109)

Water Tightness

Method B: 24 hours at 60 kPa

Pass

Reaction to Fire

Class E

(EN 13501-1)

Application

Application Information

Ambient Air Temperature

Minimum

+5 °C

Maximum

+40 °C

Relative Air Humidity

Maximum

80 %

Substrate Temperature

Minimum

+5 °C

Maximum

+40 °C
Application steps

APPLICATION INSTRUCTIONS

Please refer to the SikaShield® Installation Guide
