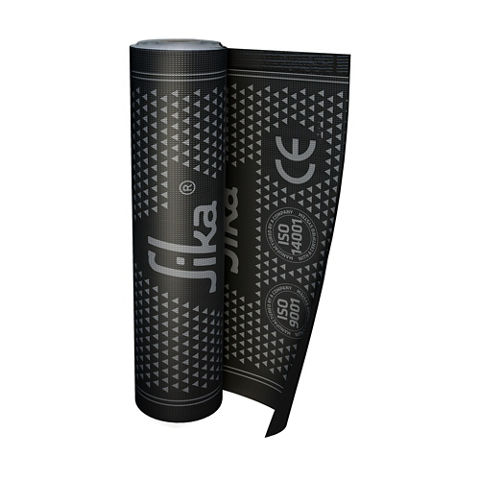

SikaShield® E54 PE 3 mm

SikaShield® E54 PE 3 mm

Elastomeric bituminous roofing underlay membrane surfaced with PE foil and flexible at -15 °C

SikaShield® E54 PE 3 mm is an SBS modified bituminous waterproofing membrane with a thickness of 3 mm. It is reinforced with a non-woven polyester fabric dimensionally stabilised with glass fibre and is flexible at -15 °C. The top surface is coated with a polyethylene foil, which ensures the bond of the overlying layer. The underside of the product has a burn-off film for easy torch-application.

  • Easy to install by torching method
  • Fully bonded
  • High durability
  • Good mechanical properties (tensile, tear, shear)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

The Product is used as a waterproofing membrane for:
  • Flat and pitched roofs
  • Inverted roofs
  • New construction and refurbishment projects
  • As a base sheet in multi-layer systems


Advantages

  • Easy to install by torching method
  • Fully bonded
  • High durability
  • Good mechanical properties (tensile, tear, shear)

Packaging

Roll width

1.0 m

Roll length

8.0 m

Colour

Top surface

Polyethylene foil

Bottom surface

Polyethylene foil

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE marking and declaration of performance based on EN 13707:2004+A2:2009 Flexible sheets for waterproofing — Reinforced bitumen sheets for roof waterproofing — Definitions and characteristics

  • BBA Certified (19/5716)
Product Information

Chemical Base

Composition

SBS modified bitumen

Reinforcing material

non-woven spunbond polyester fabric

Shelf Life

36 months from date of production

Storage Conditions

The Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between +5 °C and +35 °C. Store in a vertical position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Effective Thickness

Effective thickness

3.0 mm ± 0.2 mm
Technical Information

Resistance to Tearing (nail shank)

Longitudinal (MD)

140 N ± 42 N

Transversal (CMD)

140 N ± 42 N

Joint Shear Resistance

Longitudinal

350 N/50 mm ± 70 N/50 mm

Transversal

250 N/50 mm ± 50 N/50 mm

Flexibility at low temperature

≤ -15 °C

(EN 1109)

Water Tightness

Method B: 24 hours at 60 kPa

Pass

Reaction to Fire

Class E

(EN 13501-1)

Application

Application Information

Ambient Air Temperature

Minimum

+5 °C

Maximum

+30 °C

Relative Air Humidity

Maximum

80 %

Substrate Temperature

Minimum

+5 °C

Maximum

+30 °C


Application steps

APPLICATION INSTRUCTIONS

Please refer to the SikaShield Installation Guide.
