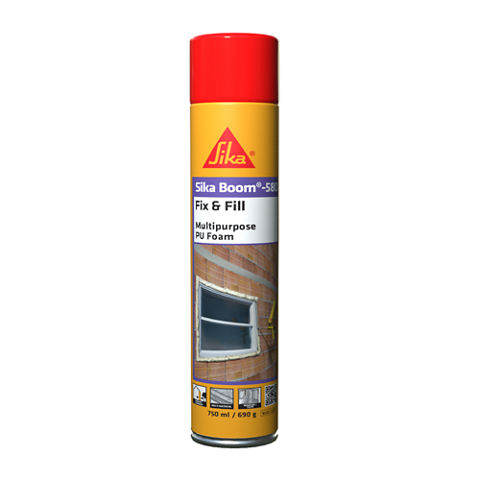

Sika Boom®-580 Fix & Fill

Sika Boom®-580 Fix & Fill

General purpose polyurethane self-expanding gun applied foam

Sika Boom®-580 Fix & Fill is a polyurethane, 1-part, self-expanding foam made for professional application by dispenser gun for general purposes.

  • Professional application with dispenser gun
  • Good thermal insulation
  • Effective sound dampening
  • Good adhesion to many construction materials
  • Good filling capabilities
  • 1-part ready to use
  • Can be cut, trimmed, sanded and painted
Ask for a quote
Product Data Sheet Show all documents

Usage

The Product is designed for:
  • Insulating and filling cavities and voids
  • Filling joints around window and door frames
  • Insulating against noise, cold and draughts
  • Filling around pipes / conduit penetrations
The Product can be used for interior and exterior applications.

Advantages

  • Professional application with dispenser gun
  • Good thermal insulation
  • Effective sound dampening
  • Good adhesion to many construction materials
  • Good filling capabilities
  • 1-part ready to use
  • Can be cut, trimmed, sanded and painted

Packaging

Box content

Canister specification

12 canisters per box

750 ml, 550 ml, rubber valve

Refer to current price list for packaging variations.

Colour

Light yellow

Product Details

Product Information

Chemical Base

Polyurethane foam

Shelf Life

15 months from the date of production.

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +25 °C. Store in an upright position. Protect the canister from direct sunlight and temperatures above +50 °C (danger of exploding).
Always refer to packaging.

Density

Cured product

~21 kg/m3


Technical Information

Service Temperature

−40 °C min. / +80 °C max. (briefly up to +100 °C)

UV Exposure

Not permanently UV stable

Application

Application Information

Product Temperature

Optimum

+18 °C min. / +25 °C max.

Ambient Air Temperature

Optimum

+20 °C

Minimum

+5 °C

Maximum

+35 °C

Substrate Temperature

Optimum

+20 °C

Minimum

+5 °C

Maximum

+35 °C

Tack Free Time

~10 min

(FEICA TM 1014)

Cutting Time

~35 min (time after which a 30 mm bead can be cut)

(FEICA TM 1005)
Consumption

Yield

Foam (box) yield, 550 ml canister

~28 L

Foam (box) yield, 750 ml canister

~45 L

Joint yield, 550 ml canister

~26 m

Joint yield, 750 ml canister

~33 m

Joint yield based on 20 mm × 50 mm joint
Application steps

APPLICATION INSTRUCTIONS

SUBSTRATE PREPARATION

The substrate must be clean, sound, firm, free from oils, grease, dust and loose or friable particles. Paint, cement laitance and other poorly adhering contaminants must be removed. The Product adheres without primers and/ or activators to most building materials such as wood, concrete, brick, metal or aluminium. For non-conventional substrates a preliminary adhesion test is recommended.



CLEANING OF TOOLS

  1. Clean the application gun by screwing Sika Boom® Cleaner onto the thread of the application gun.
  2. Press the trigger to clean it.
    IMPORTANT: Do not leave the Sika Boom® Cleaner screwed on the application gun, as the valve could be damaged.

Clean any other tools or application equipment with Sika Boom® Cleaner or Sika® Remover-208 immediately after use. Hardened material can only be mechanically removed
