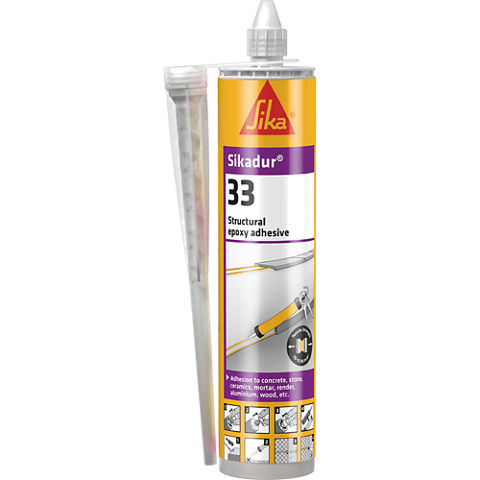

Sikadur®-33

Sikadur®-33

2-part structural epoxy adhesive

Thixotropic two part structural adhesive based on epoxy resin in a cartridge.

  • Can be used on damp concrete
  • Excellent adhesion to the substrate
  • Non-sag, also overhead
  • High load capacity
  • Shrinkage-free hardening
  • Styrene-free
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

As a structural adhesive for:
  • Concrete elements
  • Hard natural stone
  • Ceramics, fibre cement
  • Mortar, Bricks, Blocks, Masonry, render etc.
  • Steel, Iron, Aluminium
  • Wood
  • Polyester, Epoxy
For concrete repairs Interior, vertical and overhead repair of:
  • Corners and edges
  • Hole and void filling
  • Joint arrises
Joint filling and crack sealing:
  • Crack filling and sealing (non-moving)
Metalwork, carpentry:
  • Fixing and fastening of handrails, railings, balustrades and supports
  • Fixing of window and door frames
For use in the following:
  • Concrete
  • Hard natural stone
  • Solid rock
  • Hollow and solid masonry
  • Steel
  • Wood


Advantages

  • Can be used on damp concrete
  • Excellent adhesion to the substrate
  • Non-sag, also overhead
  • High load capacity
  • Shrinkage-free hardening
  • Styrene-free

Packaging

250 ml cartridge

Colour

Part A: white
Part B: grey
Part A+B mixed: grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Testing according to EN 1504-4.
Product Information

Chemical Base

Epoxy resin.

Shelf Life

12 months from date of production if stored properly in undamaged and unopened.  On each Sikadur®-33 cartridge the best before date is printed.

Storage Conditions

Cool and dry conditions, at temperatures between
+10°C and +30°C. Protect from direct sunlight.

Density

1.35 kg/l (part A+B mixed)
Technical Information

Compressive Strength

~50 N/mm2 (14 days, +23°C)

(According to EN 12190)

Flexural Strength

~20 N/mm2 (14 days, +23°C)

(According to EN 196)

Tensile Strength

10 - 15 N/mm2 (14 days, +23°C)

(According to DIN EN ISO 527-3)

Tensile Adhesion Strength

Time

Substrate

Bond strength

After 3 days

Dry concrete

> 5 N/mm2 *

After 3 days

Damp concrete

>5 N/mm2 *

After 3 days

Steel blast cleaned

> 10 N/mm2

After 3 daysBrick dry> 1.5 N/mm2 **

*100% concrete failure
**100% brick failure

Shrinkage

Hardens without shrinkage.

Application

Application Information

Mixing Ratio

Part A : part B = 1 : 1 by volume

Layer Thickness

0.5 mm min. / 10 mm max.

Sag Flow

Non-sag, suitable for overhead application

Ambient Air Temperature

+10°C min. / +35°C max.

Dew Point

Avoid condensation during dew point conditions.  Substrate temperature during application must be at least 3°C above dew point.

Substrate Temperature

+10°C min. / +35°C max.

Substrate Moisture Content

Substrate must be dry or mat damp (no standing water)

Pot Life

60 minutes (+23°C)

Curing Time

Temperature

Open Time

Curing Time

+10°C

210 minutes

3 days*

+20°C

90 minutes

2 days*

+35°C

45 minutes

1 day*

* to achieve approx. 80% of the performance
Min. cartridge temperature +10°C
Application steps

SUBSTRATE QUALITY

Mortar and concrete must be older than 28 days.
Adequate substrate strength (concrete, masonry, natural stone) must always be confirmed.

MIXING

Getting the cartridge ready

  • Unscrew and remove the cap
  • Pull out the plug
  • Screw on the static mixer
  • Place the cartridge into the gun and start application


Important note:  When the work is interrupted the static mixer can remain on the cartridge after the
gun pressure has been relieved. If the resin has hardened in the nozzle when work
is resumed, a new nozzle must be attached.

CLEANING OF TOOLS

Clean all tools and application equipment with Sika® Thinner C immediately after use. Hardened / curded material can only be mechanically removed.
