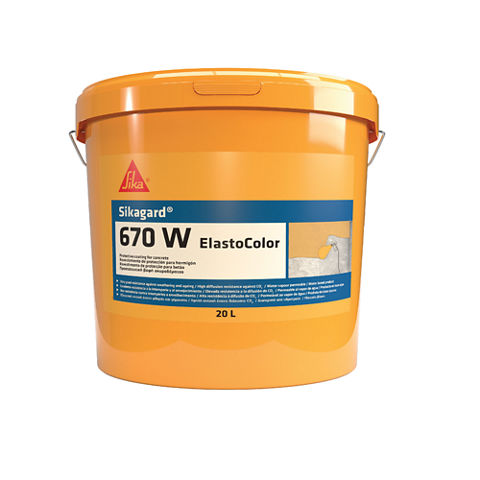

Sikagard®-670 W Elastocolor
Sikagard®-670 W Elastocolor is a one component protection coating against carbonation, based on water dispersed acrylic resins, which produces a matt finish.
- High CO2 diffusion resistance, reducing the carbonation speed
- Water vapour permeability, allowing substrate to breathe.
- Excellent weathering and ageing resistance
- Waterproof to rain (prevents water penetration)
- Ecological, solvent free.
- Easy to apply.
Usage
- As anticarbonation coating on cement mortar or reinforced concrete surfaces
- To protect façades and concrete elements and as aesthetic finishing without altering the substrate texture.
- As preventive protection of new reinforced concrete structures on aggressive environment
- As protective and decorative coating on repair work with Sika Top and Sika Monotop systems
- To protect fibre reinforced concrete
Advantages
- High CO2 diffusion resistance, reducing the carbonation speed
- Water vapour permeability, allowing substrate to breathe.
- Excellent weathering and ageing resistance
- Waterproof to rain (prevents water penetration)
- Ecological, solvent free.
- Easy to apply.
Packaging
Cans of 20kg.
Colour
White, grey RAL 7030 y grey RAL 7032.
Other colours under request
Product Details
APPROVALS / STANDARDS
Product for protection against the penetration, humidity control and resistivity increase (coating) following EN 1504-2:2004, with Declaration of Performance 01 03 03 03 006 0 0000001 1053, with the certificate of conformity of the factory production control number 0099/CPR/B15/0007
Chemical Base
Water dispersed acrylic resins
Shelf Life
12 months from date of production
Storage Conditions
If stored properly in undamaged and unopened, original sealed packaging in dry and cool conditions, protected from frosts.
Density
~ 1,30 kg/l ( at +20ºC)
Solid content by weight
~45% by weight
Solid content by volume
~60% by volume
System Structure
Normal Conditions:
System | Product | Number of applications |
D | Sikagard® -670 W Elastocolor | 2 |
Absorbent sustrates
Priming | Sikagard® -670 W Elastocolor diluted in 5% of water | 1 |
Top Coat | Sikagard® -670 W Elastocolor | 2 |
Marine environments, exposed concrete to dicing salts
Priming | Sikagard® -711 ES | 1 |
Top Coat | Sikagard® -670 W Elastocolor | 2 |
Note: may need a third layer of Sikagard®-670 W Elastocolor depending of the porosity of the substrate or applied over a previous dark coating (well adhered)
Application
Mixing Ratio
For normal use Sikagard®-670 W Elastocolor is supplied ready to use.
Stir thoroughly prior to application
In case of very high or very low temperatures the viscosity can be adjusted by adding a 2% water, previously removing their use.
If absorbent substrates, dilute the product by 5% maximum water, mix the product well before applying.
Layer Thickness
Mín 60 micron (by layer)
Máx.120 micron (by layer)
Ambient Air Temperature
+8º C min / +35º C max
Relative Air Humidity
< 80%
Substrate Temperature
+8º C min / +35º C max
Waiting Time / Overcoating
Note: can be applied without priming if the existing coat has been througly cleaned
Previous coating | Waiting time | Next coating |
Sikaguard®-552 W Aquaprimer ES | min 12 hours | Sikagard®-670 W Elastocolor |
Hydrophobic Impregnations Sikagard® | See data in the Technical data sheet | Sikagard®-670 W Elastocolor |
| Sikagard®-670 W Elastocolor | ~ 30 minutes | Sikagard®-670 W Elastocolor |
Applied Product Ready for Use
Full cure:~4 hours at +23ºC
Consumption
Product | Per layer |
Hydrophobic impregnation Sikagard® | Check Technical Data Sheet |
Sikagard® -670 W Elastocolor | ~ 0.175 - 0.225 kg/m2 |
APPLICATION
Sikagard®-670 W Elastocolor can be manually applied by paintbrush or short piled roller or mechanically by «air-less».
The second layer product must be applied in perpendicular to the first direction to
achieve an optimal opacity.
For projection equipment airless, use the following:
- ~ 150bar pressure
- ~ 0.38 to 0.53 mm nozzle
- Application angle ~ 50-80
CLEANING OF TOOLS
Clean all tools and application equipment with clean water immediately after use.
Hardened / cured material can only be removed mechanically
