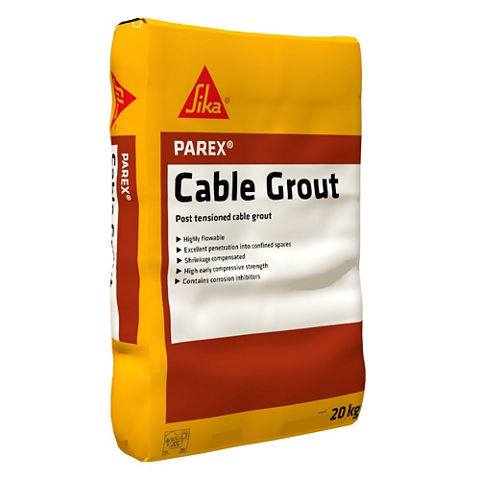

Parex Cable Grout

Parex Cable Grout

CARES approved grout for grouting of cables in post-tensioned concrete.

Parex Cable Grout is a 1-part, cementitious, fluid flowing grout which will penetrate and fill fine voids within and around the cables then harden without shrinkage to give a high strength product. Particular advantages of the product include quick and easy mixing with water producing a flowing mix which promotes penetration into confined spaces. The grout is shrinkage compensated and contains a powerful corrosion inhibitor to protect the cables.
Once hardened and cured, high compressive strengths are achieved giving resistance to static and dynamic stresses. Cable Grout has a total chloride, sulphate and sulphide-ion content below that specified in EN 447 and CARES PT10.


  • Shrinkage compensated
  • High early compressive strength
  • Excellent flowability
  • Contains corrosion inhibitors
  • CARES Approved
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

  • Grouting of cable ducts, voids and fine fissures.
  • Support of cable anchor plates and ground anchors.
  • To provide bearing or contact between structural elements.
  • Grouting behind shafts and tunnel linings.
  • Underpinning, loose floor and road slabs.

Advantages

  • Shrinkage compensated
  • High early compressive strength
  • Excellent flowability
  • Contains corrosion inhibitors
  • CARES Approved

Packaging

20 kg bags

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Cable Grout has been tested in accordance with the appropriate parts of the following Standards:
EN445, EN446, EN447, EN196-1, EN196-3.
CARES PT10 certificate number 080706 (copies available on request).
Product Information

Shelf Life

6 months from date of production

Storage Conditions

Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +35 °C. Always refer to packaging.
Technical Information

Compressive Strength

1 Day

3 Days

7 Days

28 Days

18 N/mm2

40 N/mm2

55 N/mm2

65 N/mm2

Reaction to Fire

Non-flammable

Bleeding

0.1%

(EN 445)

Application

Application Information

Mixing Ratio

33% - 35%

6.6 - 7 litres of water for 20 kg of powder.

Flowability

Flow cone

To 14.5s

T30A 14.3s

T30B 13.8s

Ambient Air Temperature

+5°C min. +35°C max.

Substrate Temperature

+5°C min. +35°C max.

Setting time

< 22 hours

Initial set time

> 6 hours
Consumption

Yield

Each 20kg bag of Parex Cable Grout will yield approximately 13 litres of mixed material at water dose rate of 35%.
Application steps

MIXING

Measure the appropriate amount of water to achieve the desired grout consistency. For each 20kg bag of Parex Cable Grout, a maximum of 7 litres of water are required. For single bag mixes suitable mixing may be achieved using a high torque slow speed drill with a Grout Stirrer. For larger mixes use a standard grout mixer such as the Groutmaster, Putzmeister or Colcrete series. Pour the required quantity of clean water into a clean mixing vessel. Slowly add the Parex Cable Grout to the water whilst continually mixing. Keep the mixed grout in a slow agitating holding tank prior to placing.

APPLICATION

Where Parex Cable Grout will be pumped into place the grout pump should be of the positive displacement type capable of generating at least 10 bars pressure. Up to 40 bars may be required to fill particularly long or high upward running ducts. The rate and continuity of placing should be controlled to encourage good penetration of grout into the voids within the duct and the expulsion of air from the duct. Do not disturb once grouting has been completed before the grout has hardened. Parex Cable Grout may be placed at temperatures between +5°C and +35°C.



CURING TREATMENT

After grouting has been completed, or when the formwork is removed, any exposed grout must be cured immediately with Sikafloor® ProSeal. During adverse weather conditions, such as high temperatures and drying winds, a second application of Sikafloor® ProSeal should be applied after the first application is dry.

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use. Hardened/cured material can only be mechanically removed.
