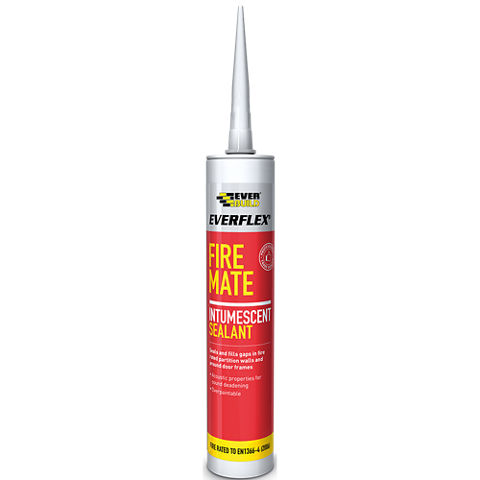

EVERBUILD® Fire Mate®

EVERBUILD® Fire Mate®

An intumescent acrylic sealant that swells when exposed to temperatures in excess of 125°c to prevent the passage of fire and smoke

EVERBUILD® Fire Mate® is a five hour rated, one part, emulsion acrylic based, intumescent Acoustic sealant that gives a firm yet flexible seal to joints in a variety of fire rated structures. The product, in suitably designed joints, will resist the passage of fire for up to 5 hours. The selected fillers used in this formulation also make it suitable for use as an acoustic sealant.

  • When exposed to heat, it swells greater than 150% of its original size, creating a char that will resist the passage of fire for up to 5 hours.
  • No priming required for most construction substrates.
  • Permanently flexible with more than 100% elongation to ISO8339.
  • For use in joints up to 50mm wide.
  • Excellent acoustic properties for sound deadening - Average noise reduction of 24db (100-3150Hz).
  • Non slump - easy to apply and tool off.
  • Fast cure - tack free in 15 minutes.
  • Overpaintable.
  Slump Nil in joints up to 50mm and 0mm to ISO7390 Max Joint Width 50mm Skin over time 10 minutes Tack free time15 minutesFull Cure3 to 5 days, dependent on thickness, ambient temperature and humidityFire test temp1160°C
Ask for a quote
Product Data Sheet Show all documents

Usage

  • Sealing joints, voids and irregular holes in fire walls, partitions and other structures; also for maintaining the integrity of pipes and cables that penetrate them.
  • For internal perimeter pointing of fire rated door and window frames.

Advantages

  • When exposed to heat, it swells greater than 150% of its original size, creating a char that will resist the passage of fire for up to 5 hours.
  • No priming required for most construction substrates.
  • Permanently flexible with more than 100% elongation to ISO8339.
  • For use in joints up to 50mm wide.
  • Excellent acoustic properties for sound deadening - Average noise reduction of 24db (100-3150Hz).
  • Non slump - easy to apply and tool off.
  • Fast cure - tack free in 15 minutes.
  • Overpaintable.
  Slump Nil in joints up to 50mm and 0mm to ISO7390 Max Joint Width 50mm Skin over time 10 minutes Tack free time15 minutesFull Cure3 to 5 days, dependent on thickness, ambient temperature and humidityFire test temp1160°C

Packaging

295ml cartridge

Colour

Brown, Grey and White

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Tested following the principles of BS EN 1366-4:2006 as detailed in Warrington Fire Research Report No. 181967 (May 2009). BS EN 1366-3:2009 as detailed in Warrington Fire Research Report No. 349127 (February 2015). Acoustic rated to BS EN ISO 140/3. Tested for air permeability to EN13141-1. EN15651-1 F-EXT-INT Class F7.5P.

Certified under the harmonized European standard EN15651 for façade for interior and exterior applications in compliance with the Construction Product Regulation.



Fire Test Results

Backing Material - PE Open Cell Foam

Wall Specimen

Specimen

Gap Face Materical Combination

Width/Depth MM

Integrity (Mins)

Insulation (Mins)

GAerated concrete/ Aerated concrete12/6301*222
HAerated concrete/aerated concrete30/15301*301*
IAerated concrete/softwood12/610875
JAerated concrete/hardwood12/6153152
KAerated concrete/softwood30/15114114
LAerated concrete/steel12/6301*80


Floor Specimen

Specimen

Gap Face Materical Combination

Width/Depth MM

Integrity (Mins)

Insulation (Mins)

AAerated concrete/aerated concrete12/6301*196
BAerated concrete/aerated concrete30/15301*81
CAerated concrete/aerated concrete50/25301*74
DAerated concrete/steel12/628843
EAerated concrete/steel301*41
FAerated concrete/steel29035

*The overall test was discontinued after a period of 301 mins.
Product Information

Chemical Base

Acrylic

Shelf Life

24 months from date of manufacture

Storage Conditions

Store in cool dry conditions between +5°C and +30°C. PROTECT FROM FROST

Density

1.6 - 1.65g/cm3
Technical Information

Movement Capability

+/- 7.5% of original size

Joint Design

Max Width - 50mm

Application

Application Information

Curing Time

3 to 5 days, dependent on thickness, ambient temperature and humidity

Skin Time

10 minutes

Tack Free Time

15 minutes
Application steps

SUBSTRATE PREPARATION

All surfaces must be clean, dry and dust free. All loose or flaking surface coatings, and old sealant and mastic joints, should be removed before application.
