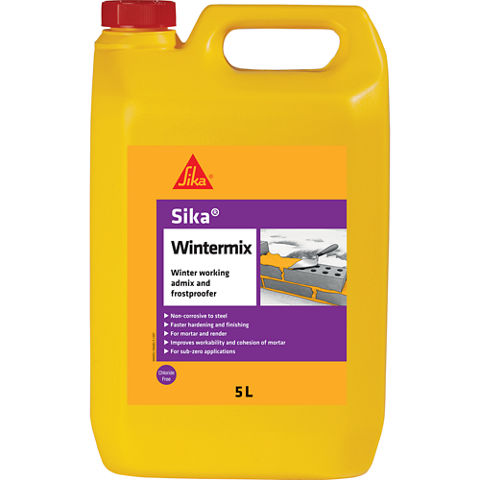

Sika® Wintermix

Winter working admixture and frostproofer

Sika® Wintermix is air entraining chloride free liquid admixture for mortar and concrete which also acts as an accelerator for work in sub - zero temperatures. Improves workability and freeze/thaw resistance in brick laying mortars and eliminates the need for a separate frostproofer.

  • Increased frost resistance during setting.
  • Non - corrosive to embedded metal.
  • Eases tamping down and alignment.
  • Improves workability/trowelability even in cold weather.
  • Provides resistance to freeze/thaw cycling down to -8°C in both wet and dry mortar.
  • Reduces bleeding/segregation.
  • Replaces lime in mix, hence reduces possibility of lime bloom and efflorescence.
  • Reduces shrinkage (cracking and crazing reduced).
  • Faster finishing times even in cold weather.
Typical Reduction in Setting Times 20-30% at 2.5Ltr/50Kg cement
Ask for a quote
Product Data Sheet Show all documents

Usage

  • As an air entraining water reducing admixture and accelerator/frostproofer for brick and block laying mortar, render (internal and external) and concrete.
  • Suitable for load bearing brickwork, block laying, external and internal rendering, pointing/repointing brickwork, floor screeds


Advantages

  • Increased frost resistance during setting.
  • Non - corrosive to embedded metal.
  • Eases tamping down and alignment.
  • Improves workability/trowelability even in cold weather.
  • Provides resistance to freeze/thaw cycling down to -8°C in both wet and dry mortar.
  • Reduces bleeding/segregation.
  • Replaces lime in mix, hence reduces possibility of lime bloom and efflorescence.
  • Reduces shrinkage (cracking and crazing reduced).
  • Faster finishing times even in cold weather.
Typical Reduction in Setting Times 20-30% at 2.5Ltr/50Kg cement

Packaging

5 ltr jerry

Colour

Amber clear liquid

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

EN 934-3:2009 Air entraining/plasticizing mixture
Product Information

Shelf Life

24 months from date of manufacture when stored according to manufacturer’s instructions.

Storage Conditions

Store between 5 and 25 ºC. Will reconstitute after freezing.

Density

1.08-1.14 g/cm3

pH-Value

8.5 - 10.5

Total Chloride Ion Content

< 0.1% w/w
Technical Information

Concrete Mix Design

The following are examples of modified mix designs.

1: 0.25 :3 cement : lime : sand. .

use 1 : 3 cement : sand : + Sika® Wintermix

1:1:6 cement : lime : sand

use 1 : 6 cement : sand + Sika® Wintermix

BRICKLAYING/POINTING: Use a mix design appropriate to brick strength (1 : 3 to 1 : 6).

INTERNAL RENDERS: 1 : 6 + Sika® Wintermix

EXTERNAL RENDERS: 1 : 3 + Sika® Wintermix

Application

Consumption

Recommended Dosage

Ambient temperatures down to -4°C: 2.5Litres per 50 kg cement

Ambient temperatures below -8°C: 5Litres per 50 kg cement
Application steps

APPLICATION INSTRUCTIONS

SURFACE PREPARATION

All materials used must be free from ice and the temperature of the mix prior to placing not be less than 4°C. Concrete must be covered after placing until the minimum strength is obtained or until the temperature rises above freezing. Do not use weak mixes during cold weather.

APPLICATION

Work should be carried out in accordance with the methods outlined in the Code of Practice BS5628 Part 3 for protection and use of mortars at low temperatures and DOE Advisory Leaflet No. 8. In all cases, add to mix at an addition rate of 2.5 to 5 litres per 50kg cement depending on the degree of plasticising/acceleration required. Note: remember to reduce required quantity of water accordingly. Alternatively, add to mixing drum at same time as water.
