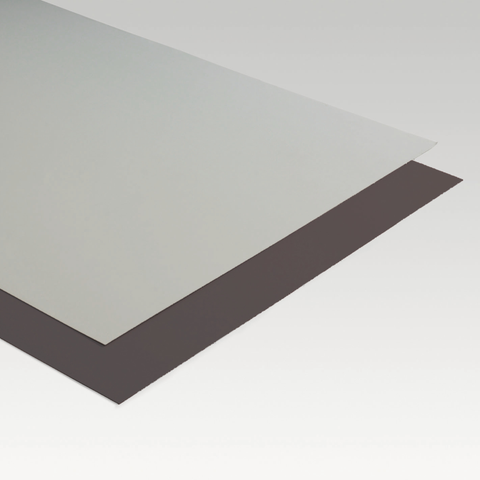

Sikaplan® Metal PVC

Metal sheets and coils laminated with Sikaplan® PVC roofing membrane

Sikaplan® Metal PVC is a galvanised steel sheet laminated with 0,8 mm Sikaplan® S Polyvinyl chloride (PVC) roof waterproofing membrane.

  • Resistant to UV exposure
  • Can be cut and shaped either on site or in metal workshop
  • Sikaplan® S lamination is hot air weldable
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

Production of profiles for perimeter flashing, junctions, fastening and anchorage.
  • Sikaplan® PVC roof waterproofing membrane systems.


Advantages

  • Resistant to UV exposure
  • Can be cut and shaped either on site or in metal workshop
  • Sikaplan® S lamination is hot air weldable

Packaging

Sikaplan® Metal Sheet

packing unit

30 sheets per pallet

30 sheets per pallet

length

2,00m

3,00 m

width

1,00 m

1,00 m

weight

5,70 kg/m2 (+/-8 %)

5,70 kg/m² (+/- 8 %)

weight per sheet

11,40 kg (+/-8 %)

17,10 kg (+/- 8 %)

Sikaplan® Metal Sheet Coil

packing unit

1 coil per pallet

4 coils per pallet

length

300,00 m

30,00 m

width

1,00 m

1,00 m

weight

5,70 kg/m2 (+/- 8 %)

5,70 kg/m2 (+/- 8 %)

weigth per coil

1710,00 kg (+/- 8 %)

171,00 kg(+/- 8 %)

Colour

Colour:

Top surface:light grey, slate grey
Bottom surface:grey

Product Details

Product Information

Chemical Base

Top layer:polyviny chloride (PVC)
Bottom layer:galvanised steel (quality DX51D Z275), additionally coated with grey lacquer

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +30 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Thickness

Sikaplan® lamination0,80 mm (-0,040 mm / +0,080 mm)
Galvanised metal0,60 mm (+/- 0,060 mm)

Effective Thickness

1,40 mm (-0,100 / +0,140 mm)
System information

System Structure

The following products must be considered for use depending on roof design:

Sikaplan® G / VG / VGWT
Sikaplan® S
Sikaplan® SG
Sikaplan® SGK
Sikaplan® SgmA
Sikaplan® 18 D

Compatibility

Top surface PVC lamination is not resistant to tar, bitumen, oil and materials containing solvents. These materials could adversely affect the product properties.

Application

Application Information

Ambient Air Temperature

-20 °C min. /  +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
