Sikafloor® MultiDur ES-56 ESD
Sikafloor® MultiDur ES-56 ESD is an epoxy, smooth finish, ESD flooring system. The system is designed to dissipate electrostatic charges (ESD) and protect personnel and sensitive equipment in electrostatic protected areas (EPA).
- Provides reliable and long lasting ESD protection
- Seamless surface requires minimal cleaning and maintenance
- Functional finish with outstanding appearance
- Low VOC / AMC emissions
- High chemical resistance
- High mechanical resistance
- Smooth gloss finish
Usage
The system can be used in industrial buildings such as:- Pharmaceutical facilities
- Automotive facilities
- Electronic facilities and data centres
Advantages
- Provides reliable and long lasting ESD protection
- Seamless surface requires minimal cleaning and maintenance
- Functional finish with outstanding appearance
- Low VOC / AMC emissions
- High chemical resistance
- High mechanical resistance
- Smooth gloss finish
Colour
Cured colour | Available in the approximate colours RAL 1014, RAL 3012, RAL 5024, RAL 6000, RAL 6010, RAL 6020, RAL 6021, RAL 6027, RAL 6033, RAL 6034, RAL 7005, RAL 7011 RAL 7015, RAL 7016, RAL 7024, RAL 7030, RAL 7032, RAL 7035, RAL 7037, RAL 7038, RAL 7040, RAL 7042, RAL 7047 |
Please contact Sika customer service for information on availability.
Note: When the system is exposed to direct sunlight, there may be some discol-ouration and colour variation. This has no influence on the function and performance of the floor finish.
For colour matching: Apply colour sample and confirm selected colour under real lighting conditions.
System Details
APPROVALS / STANDARDS
- Conforms to the requirements of ANSI/ESD S20.20 and IEC 61340-5-1
- Fire classification report, EN 13238, Ghent University, Report No. 20-1069-02
- Approval for ESD protective products acc. IEC 61340, RISE Institute, No. ESD-20-0024, rev 1
- Test of floor, IEC 61340-4-1, RISE Institute, Report No. O120372 B
System Structure

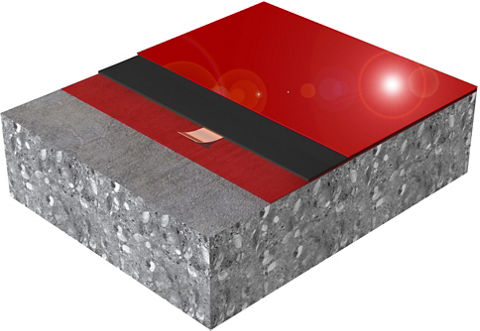

Sikafloor® MultiDur ES-56 ESD (~0.8–2.0 mm)
Self-smoothing / Resin Screed
Layer | Product |
Primer or scratch coat | Sikafloor®-150 |
Conductive Primer + Earthing connection | Sikafloor®-220 W Conductive + Sika® Earthing Kit |
Wearing layer / Wearing screed | Sikafloor®-2350 ESD |
Wearing layer / Roller coat | Sikafloor®-2350 ESD unfilled |
Composition
Epoxy
Nominal thickness
~0,8–2,0 mm
Chemical Resistance
Refer to the chemical resistance of Sikafloor®-2350 ESD.
Thermal Resistance
Short-term, maximum 7 days | +60 °C |
IMPORTANT
No simultaneous mechanical and chemical strain
While the product is exposed to temperatures up to +60 °C, do not also subject it to chemical and/or mechanical strain, as it may cause damage to the product.
Electrostatic Behaviour
Resistance to ground | RG < 109 Ω |
Typical average resistance | RG ≤ 105 Ω to 106 Ω |
Body voltage generation | < 100 V |
System Resistance (Person/ | < 109 Ω |
Note: Measurement results can be affected by ESD clothing, ambient conditions, measurement equipment, cleanliness of the floor and the test personnel.
IMPORTANT
ESD footwear requirements
The ESD shoes used in the EPA must have a resistance of < 5 MOhm according to IEC 61340-4-3 at climate class 1 (12 % relative humidity / +23 °C). In order to achieve charges of < 30 volts of human body charge during the walking test (at 12 % relative humidity / +23 °C), we recommend using the following ESD shoes: Weeger ESD clog, art. 48512-30, www.schuh-weeger.de.
ESD MEASUREMENT CONDITIONS AND SPECIFICATIONS
All measurement values for the system stated in the System Data Sheet (except those referring to proof statements) were measured using the following equipment and ambient conditions:
Title 1Condition or Equipment | Title 2Specification |
ASize of ESD-footwear | B42 (EU) (UK: 8; US: 8,5) |
CTest person weight | D90 kg |
Ambient conditions | +23 °C / 50 % |
Measuring device for measuring resistance to ground | Metriso 2000 or 3000 (Warmbier) or comparable |
Surface resistance probe | Carbon Rubber electrode. |
Rubber pad hardness | Shore A 60 (±10) |
Measuring device for measuring body voltage generation | Walking Test Kit WT 5000 (Warmbier) or comparable |
Application
Ambient Air Temperature
Minimum | +15 °C |
Maximum | +30 °C |
Relative Air Humidity
80 % r.h. max.
Dew Point
Beware of condensation. The substrate and uncured applied product must be at least +3 °C above dew point to reduce the risk of condensation or blooming on the surface of the applied product. Low temperatures and high humidity conditions increase the probability of blooming.
Substrate Temperature
Minimum | +15 °C |
Maximum | +30 °C |
Substrate Moisture Content
< 4 % parts by weight (Sika® Tramex moisture meter)
No rising moisture (ASTM D4263, polyethylene sheet)
The substrate must be visibly dry with no standing water.
Waiting Time / Overcoating
Before applying Sikafloor®-220 W Conductive on Sikafloor®-150/Sikafloor®-151/Sikafloor®-156/Sikafloor®-161/Sikafloor®-144/Sikafloor®-701 allow:
Substrate temperature | Minimum | Maximum |
+15 °C | ~24 hours | ~4 days |
+20 °C | ~12 hours | ~48 hours |
+30 °C | ~8 hours | ~24 hours |
Before applying Sikafloor®-2350 ESD on Sikafloor®-220 W Conductive allow:
Substrate temperature | Minimum | Maximum |
+15 °C | ~26 hours | ~7 days |
+20 °C | ~17 hours | ~5 days |
+30 °C | ~12 hours | ~4 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+15 °C | ~48 hours | ~3 days | ~7 days |
+20 °C | ~24 hours | ~48 hours | ~4 days |
+30 °C | ~16 hours | ~36 hours | ~3 days |
Note: Times apply when the last layer of the system has been applied. Times are affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
Self smoothing / resin screed
Layer | Product | Consumption |
Primer or scratch coat | 1 × Sikafloor®-150 | ~0.3 kg/m² to 0.5 kg/m² |
Levelling (if required) | Sikafloor®-150 | Refer to the individual Product Data Sheet |
Conductive Primer + Earthing connection | Sikafloor®-220 W Conductive + Sika® Earthing Kit | 1 × 0.08–0.10 kg/m² |
Wearing layer / Wear-ing screed | Sikafloor®-2350 ESD filled with 20% quartz sand 0.1–0.3 mm | Maximum 2.5 kg/m² |
Wearing layer / Roller coat | Sikafloor®-2350 ESD unfilled | ~0.8 kg/m² |
Note: With thinner layers, the chemical and mechanical resistance and the flow properties can be reduced.
Note: These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
APPLICATION
Installation of earthing points
Refer to Sika Method Statement: Mixing & Application of Flooring Systems.
Number of earthing connections per room: Minimum of 2 earthing connections. The optimum number of earthing connections depends on the local conditions and must be specified on drawings or other contract documentation.
ESD conductivity measurements
Recommended number of conductivity measurements is specified in the following table:
Ready applied area | Number of measurements |
< 10 m² | 6 |
≥ 10 m² and < 100 m² | 10 to 20 |
≥ 100 m² and < 1000 m² | 50 |
≥ 1000 m² and < 5000 m² | 100 |
If the measurements yield values that are outside of the agreed specification, follow these steps:
- Carry out one additional measurement within a radius of approximately 30 cm around the original measuring point.
If the value of the new measurement meets the agreed specification, the original measurement can be disregarded. If the value of the new measurement does not meet the agreed specification, you may repeat the measurement de-scribed above, until the fulfilment of the requirements have been verified. If the requirements cannot be verified, contact Sika technical services.
IMPORTANT
Temporary heating
If temporary heating is required, do not use gas, oil, paraffin or other fossil fuel heaters. These produce large quantities of both carbon dioxide and water vapour, which may adversely affect the finish.
a) For heating, use only electric powered warm air blower systems.
IMPORTANT
Protecting the material after application
After application, protect the System from damp, condensation and direct water contact for at least 24 hours.
