Sikafloor®-2350 ESD
Electrostatic dissipative epoxy floor coating
Sikafloor®-2350 ESD is a two-part, electrostatic dissipative, self-smoothing, coloured epoxy coating. It provides a slip-resistant, hard-wearing, seamless, low-maintenance gloss finish.
- Low VOC emissions
- Good resistance to abrasion
- Low odour during application
- Very good mechanical resistance
Usage
Sikafloor®-2350 ESD is used as a:- Smooth roller coat
- Smooth wearing layer
- Seal coat or top coat for slip-resistant broadcast systems
- Concrete and cementitious substrates
- The Product may only be used for interior applications.
- The Product may only be used by experienced professionals.
Advantages
- Low VOC emissions
- Good resistance to abrasion
- Low odour during application
- Very good mechanical resistance

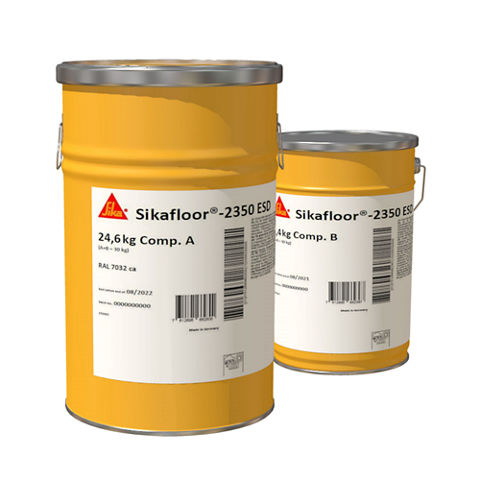

Packaging
Container Part A | 24.6 kg |
Container Part B | 5.4 kg |
Container Part A + Part B | 30 kg |
Refer to the current price list for available packaging variations.
Colour
Part A | coloured liquid |
Part B | transparent liquid |
Cured colour | Refer to the system datasheet |
Cured appearance | Gloss finish |
Exposure to direct sunlight
Note: When the product is exposed to direct sunlight, there may be some discolouration and colour variation. This has no influence on the function and performance of the coating.
Product Details
ENVIRONMENTAL INFORMATION
Contributes towards satisfying Materials and Resources (MR) Credit: Building product disclosure and optimization — Environmental Product Declarations under LEED® v4
Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Material Ingredients under LEED® v4
Contributes towards satisfying Indoor Environmental Quality (EQ) Credit: Low-Emitting Materials under LEED® v4
Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by Institut für Bauen und Umwelt e.V. (IBU)
Complies with the requirements of AgBB including the LCI-values (August 2018) for use in the indoor environment.
French regulation on indoor VOC emissions class A+
APPROVALS / STANDARDS
Approval for ESD protective products acc. IEC 61340-5-1,RISE Institute, No. ESD-20-0023
Particle emission ISO 14644-1, Sikafloor®-2350 ESD, CSM Fraunhofer, SI 2011-1195
Fire classification report, EN 13501-1, Ghent University, Report No. 20-1069-03
Slip resistance DIN 51130, Roxeler, Certificate No. 020243-20-3
Slip resistance, DIN 51130, Roxeler, Certificate No. 020243-20-2
Slip resistance DIN 51130, Roxeler, Certificate No. 020243-20-2a
Insulation Resistance DIN VDE 0100-600, kiwa, Test report No. P 12819-E
Outgassing behavior ISO 14644-15, CSM Statement of Qualification, Fraunhofer IPA
Outgassing Behavior, VOC/ SVOC, CSM Fraunhofer, Certificate No. SI 2011-1195
CE marking and declaration of performance based on EN 13813:2002 Screed material and floor screeds — Screed material — Properties and requirements — Synthetic resin screed material
CE marking and declaration of performance based on EN 1504-2:2004 Products and systems for the protection and repair of concrete structures — Surface protection systems for concrete — Coating
Chemical Base
Epoxy
Shelf Life
18 months from date of production
Storage Conditions
The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to the packaging.
Refer to the current Safety Data Sheet for information on safe handling and storage.
Density
Part A | 1.70 kg/l |
Part B | 1.00 kg/l |
Mixed Product | 1.50 kg/l |
Solid content by mass
100 %
Solid content by volume
100 %
Shore D Hardness
Cured 7 days at +23 °C | 80 |
Abrasion Resistance
Cured 7 days at +23 °C | 1.29 g, resin filled 20% with (quartz sand 0.1-0.3 mm) (H22 / 1000 cycles / 1000 g) |
Compressive Strength
Cured 28 days at +23 °C | 120 MPa |
Flexural Strength
Cured 28 days at +23 °C | 30 MPa |
Tensile adhesion strength
> 1.5 N/mm² (failure in concrete) | (EN 1542) |
Electrostatic Behaviour
Resistance to ground | RG < 109 Ω |
Body voltage generation | < 100 V |
System resistance | RG < 109 Ω |
Note: Measurement results can be affected by ESD clothing, ambient conditions, measurement equipment, cleanliness of the floor and the test personnel.
Service Temperature
Short-term, maximum 7 days | +60 °C |
IMPORTANT
Simultaneous mechanical and chemical strain
While the Product is exposed to temperatures up to +60 °C, simultaneous mechanical or chemical strain may cause damage to the Product.
- Do not expose the Product to chemical or mechanical strain at elevated temperatures
Application
Mixing Ratio
Part A : Part B (by weight) | 82 : 18 |
Product Temperature
Maximum | +30 °C |
Minimum | +15 °C |
Ambient Air Temperature
Maximum | +30 °C |
Minimum | +15 °C |
Relative Air Humidity
Maximum | 80 % r.h. |
Dew Point
Beware of condensation. The substrate and uncured applied product must be at least +3 °C above the dew point to reduce the risk of condensation or blooming on the surface of the applied product. Low temperatures and high humidity conditions increase the probability of blooming.
Substrate Temperature
Maximum | +30 °C |
Minimum | +15 °C |
Pot Life
+15 °C | 40 minutes |
+20 °C | 25 minutes |
+30 °C | 15 minutes |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+15 °C | ~48 hours | ~3 days | ~7 days |
+20 °C | ~24 hours | ~48 hours | ~4 days |
+30 °C | ~16 hours | ~36 hours | ~3 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
Layer | Product | Consumption |
Wearing layer | Sikafloor®-2350 ESD | 1.5–2.5 kg/m² filled with 20 % quartz sand 0.1–0.3 mm |
Slip resistant broadcast layer | Sikafloor®-2350 ESD | 1.1 kg/m² filled with 20 % quartz sand 0.1–0.3 mm |
Seal coat over broadcast surfaces | Sikafloor®-2350 ESD | 0.75–0.85 kg/m2 |
Smooth roller coat | Sikafloor®-2350 ESD | 0.8 kg/m² |
Textured layer | Sikafloor®-2350 ESD with ~2 % (by weight) Sika® Extender T | 0.7–0.8 kg/m² |
Note: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply the Product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
EQUIPMENT
MIXING EQUIPMENT
Electric double-paddle mixer (> 700 W, 300 rpm to 400 rpm)
APPLICATION EQUIPMENT
Trowels, including serrated
Short-pile roller
Textured roller
Squeegee
SUBSTRATE QUALITY
IMPORTANT
Reduced service life due to incorrect treatment of cracks
The incorrect assessment and treatment of cracks may lead to a reduced service life and reflective cracking.
- For static cracks, ensure the width is suitable for overcoating with Sikafloor®-2350 ESD.
- For dynamic cracks, ensure the movement is within the movement capacity of Sikafloor®-2350 ESD.
TREATMENT OF JOINTS AND CRACKS
Construction joints and existing static surface cracks in substrate require pre-treating before full layer application. Use Sikadur® or Sikafloor® resins.
SUBSTRATE CONDITION
Cementitious substrates must be structurally sound and of sufficient compressive strength (minimum 25 N/mm2) with a minimum tensile strength of 1.5 N/mm2.
Substrates must be clean, dry and free of contaminants such as dirt, oil, grease, coatings, laitance, surface treatments and loose friable material.
MIXING
TEXTURED ROLLER COATING
- Mix Part A (resin) until the coloured pigment is dispersed and a uniform colour is achieved.
- Add Part B (hardener) to Part A.
- Gradually add the required amount of Sika® Extender T (refer to Consumption).
- IMPORTANT Do not mix excessively. Mix for a further 2 minutes until a uniform mix is achieved.
- To ensure thorough mixing, pour materials into another container and mix again to achieve a smooth and uniform mix.
- During the final mixing stage, scrape down the sides and bottom of the mixing container with a flat or straight edge trowel at least once to ensure complete mixing.
2-PART + AGGREGATE MIXING PROCEDURE
- Mix Part A (resin) until the coloured pigment is dispersed and a uniform colour is achieved.
- Add Part B (hardener) to Part A.
- While mixing Parts A + B, gradually add the required filler or aggregates.
- IMPORTANT Do not mix excessively. Mix for a further 2 minutes until a uniform mix is achieved.
- To ensure thorough mixing, pour materials into another container and mix again to achieve a smooth and uniform mix.
- During the final mixing stage, scrape down the sides and bottom of the mixing container with a flat or straight edge trowel at least once to ensure complete mixing.
2-PART MIXING PROCEDURE
- Mix Part A (resin) until the coloured pigment is dispersed and a uniform colour is achieved.
- Add Part B (hardener) to Part A.
- IMPORTANT Do not mix excessively. Mix Part A + B continuously for ~3 minutes until a uniformly coloured mix is achieved.
- To ensure thorough mixing, pour materials into another container and mix again to achieve a smooth and uniform mix.
- During the final mixing stage, scrape down the sides and bottom of the mixing container with a flat or straight edge trowel at least once to ensure complete mixing.
APPLICATION
IMPORTANT
Damaged finish due to heating with fossil fuel heaters
Fossil fuel heaters powered by gas, oil or paraffin produce large quantities of both carbon dioxide and water vapour, which may adversely affect the finish.
- For temporary heating, use only electrically powered warm air blower systems. Do not use gas, oil, paraffin or other fossil fuel heaters.
IMPORTANT
Apply approved reference area before full system application
Apply a reference area before the application of a full system. The reference area must be assessed and accepted by all parties before full project application.
IMPORTANT
Temporary moisture barrier required if substrate moisture exceeds 4%
If the substrate moisture content measured with the CM-method is > 4% by weight, apply a temporary moisture barrier consisting of Sikafloor® EpoCem®.
- Contact Sika technical services for more information.
IMPORTANT
Indentations in resin due to high temperature combined with high point loading
Under certain conditions, underfloor heating or high ambient temperatures combined with high point loading may lead to indentations in the resin.
SMOOTH WEARING LAYER
- Pour the mixed Product onto the substrate. For the consumption, refer to Application Information.
- Apply the Product evenly over the surface with a serrated trowel.
- To achieve a smooth finish, smooth the surface with the flat side of a trowel.
- Back roll the surface in two directions at right angles with a steel spike roller.
TEXTURED WEARING LAYER
- Pour the mixed Product onto the substrate. For the consumption, refer to Application Information.
- Apply the Product evenly over the surface with a serrated trowel.
- Back roll the surface in two directions at right angles with a textured roller.
SELF-SMOOTHING BROADCAST WEARING LAYER APPLICATION
- Pour the mixed Product onto the substrate. For the consumption, refer to Application Information.
- Apply the Product evenly over the surface with a serrated trowel.
-
Back-roll the surface in two directions at right angles with a spike roller.
Note: Maintain a "wet edge" during application to achieve a seamless finish. -
Broadcast the surface with silicone carbide, or conductive quartz sand, lightly at first, then to excess.
Note: The aggregate is dependant on the system build-up. Refer to the relevant System Data Sheet.
SEAL COAT FOR BROADCAST SURFACES
- Pour the mixed Product onto the substrate. For the consumption, refer to Application Information.
- Spread the Product evenly over the surface with a squeegee.
-
Back-roll the surface in two directions at right angles with a medium-pile roller.
Note: Maintain a "wet edge" during application for a seamless finish.
ROLLER COATING
- Pour the mixed Product onto the substrate. For the consumption, refer to Application Information.
- Spread the Product evenly over the surface with a squeegee.
-
Back-roll the surface in two directions at right angles with a short pile roller.
Note: Maintain a "wet edge" during application for a seamless finish.
CLEANING OF TOOLS
Clean all tools and application equipment with Sika® Thinner C immediately after use. Hardened material can only be removed mechanically.
