Sikafloor® DecoDur ES-22 Granite
Sikafloor® DecoDur ES-22 Granite is a highly decorative, coloured, smooth, low VOC floor covering with a granite effect designed for indoor applications.
- Highly decorative
- Low VOC-content
- Good mechanical and abrasion resistance
- Easy application
Usage
- Particularly used in the life science, pharmaceutical industries and health care industry
- Education (e.g. Schools and Universities)
- Leisure & Culture (e.g. Museums, Stadiums)
- Retail (e.g. Shopping Malls)
Advantages
- Highly decorative
- Low VOC-content
- Good mechanical and abrasion resistance
- Easy application
Packaging
Please refer to the individual Product Data Sheets
Colour
| Iceberg:
| Hiero:
|
| Noblesse:
| Amande:
|
| Framboise:
| Fleur De Tilleul:
|
| Blue Jean:
| Nougat:
|
| Mer Du Nord:
| Bordeaux:
|
| Granit:
| Peche:
|
| Dune:
| Sanguine:
|
| Sable:
|
Appearance
Matt finish
System Details
APPROVALS / STANDARDS
- Particle emission certificate, CSM Statement of Qualification Report GMP A- No. SI 1008-533.
- Biological resistance certificate, CSM Statement of Qualification – ISO 846, very good - Report No. SI 1008-533.
- Eurofins Emission tested according to the AgBBscheme. (AgBB – Committee for Health-related Evaluation of Building Products). Sampling, testing and evaluation were performed according to ISO-16000, Report No.G05308C.
- Fire classification in accordance with EN 13501-1, classification report-No. PB-Hoch-170479-2, Hoch Fladungen, Germany, March 2017.
- Slip resistance certificate according to DIN 51130, class R9, Report No.12 6404-S/11, MPI Institute, August 2011, Germany.

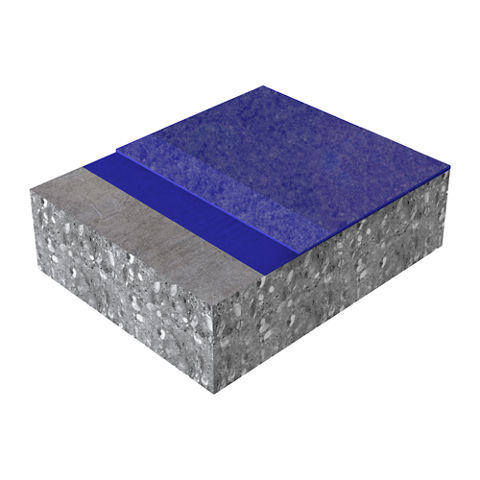

System Structure
Sikafloor® DecoDur ES-22 Granite system
| 1. Primer | Sikafloor®-264 |
| 2. Wearing coat | Sikafloor®-169 + Sika-DecoFiller |
| 3. Top coat | Sikafloor®-304 W |
Composition
Epoxy
Nominal Thickness
~2-3 mm
Shelf Life
Please refer to the individual Product Data Sheets
Storage Conditions
Please refer to the individual Product Data Sheets
Compressive Strength
| ~75 N/mm2 (7 days / +23°) | (EN-196-1) |
Reaction to Fire
Bfl-S1 | (DIN EN 13501-1) |
Chemical Resistance
Resistant to many chemicals. Contact Sika technical service for specific information.
Skid / Slip Resistance
R9 | (DIN 51130) |
Application
Product Temperature
Please refer to the individual Product Data Sheets
Ambient Air Temperature
+10 °C min. / +30 °C max.
Relative Air Humidity
80 % r.h. max.
Dew Point
Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.
Substrate Temperature
+10 °C min. / +30 °C max.
Substrate Moisture Content
When performing application work with Sikafloor® DecoDur ES-22 Granite, the substrate moisture content must not exceed 4 % pbw measured by Tramex.
Test method: Sika®-Tramex meter, CM measurement or oven-dry-method.
No rising moisture according to ASTM (Polyethylene-sheet).
Waiting Time / Overcoating
Before applying Sikafloor®-169 on Sikafloor®-156/-161/-264/-169 allow:
| Substrate temperature | Minimum | Maximum |
| +10 °C | 36 hours | 4 days |
| +20 °C | 12 hours | 2 days |
| +30 °C | 8 hours | 1 day |
Before applying Sikafloor®-304 W on Sikafloor®-169 allow:
| Substrate temperature | Minimum | Maximum |
| +10 °C | 45 hours | 4 days |
| +20 °C | 36 hours | 3 days |
| +30 °C | 24 hours | 2 days |
Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Applied Product Ready for Use
Sikafloor®-169
| Temperature | Foot traffic | Light traffic | Full cure |
| +10 °C | ~ 48 hours | ~ 6 days | ~ 10 days |
| +20 °C | ~ 30 hours | ~ 4 days | ~ 7 days |
| +30 °C | ~ 20 hours | ~ 3 days | ~ 5 days |
Sikafloor®-304 W
| Temperature | Foot traffic | Light traffic | Full cure |
| +10 °C | ~ 30 hours | ~ 48 hours | ~ 6 days |
| +20 °C | ~ 16 hours | ~ 24 hours | ~ 4 days |
| +30 °C | ~ 12 hours | ~ 18 hours | ~ 3 days |
Consumption
Sikafloor® DecoDur ES-22 Granite system
| Coating System | Product | Consumption |
| Primer | 1-2 x Sikafloor®-264 | 1-2 × ~0.4–0.5 kg/m² |
| Wearing coat | 1 pbw Sikafloor®-169 + 1.5 pbw Sikafloor®-DecoFiller | ~3.5–4.5 kg/m2 |
| Top coat | 1 x Sikafloor®- 304 W (Matt finish)* | ~0.15 kg/m² |
* Before applying Sikafloor®-304 W please refer to the individual product data sheet
CLEANING
Please refer to Sikafloor®‐ Cleaning Regime
