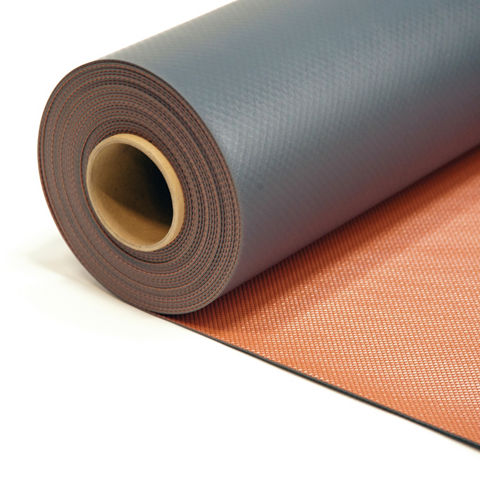

Sikaplan® Walkway-20

Sikaplan® Walkway-20

Walkway / Protection sheet for PVC flat roof system

Sikaplan® Walkway-20 is a protection sheet made of polyvinyl chloride (PVC) containing ultraviolet light stabilisers and flame retardants.

  • Suitable for exposed roof coverings
  • Easy application
  • Hot-air weldable
  • IMPORTANT Requires named reference to an established recycling programme for post-consumer PVC that is easily accessible for > 65 % of customers and that feeds post-consumer recycling material to production of new products. Delete if no such recycling programme is available.Recyclable through [named] recycling program
Enquire about this product
Product Data Sheet Show all documents

Usage

Sikaplan® Walkway-20 is used as a:
  • Protection sheet on an installed flat roof waterproofing membrane without ballast as a walkway for roof maintenance
Please note:
  • The Product may only be used by experienced professionals.
  • The Product has limited anti-slip properties, particularly in wet conditions.


Advantages

  • Suitable for exposed roof coverings
  • Easy application
  • Hot-air weldable
  • IMPORTANT Requires named reference to an established recycling programme for post-consumer PVC that is easily accessible for > 65 % of customers and that feeds post-consumer recycling material to production of new products. Delete if no such recycling programme is available.Recyclable through [named] recycling program

Packaging

Roll width

0.80 m

Roll length

10.0 m

Roll weight

20 kg

Refer to the current price list for available packaging variations.

Colour

Top layer colour

Dusty grey (~RAL 7037), Brick Red (~RAL 8004)

Bottom layer colour

Dark grey

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

  • Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Sourcing of Raw Materials under LEED® v4 — 1 point
Product Information

Chemical Base

Polyvinyl chloride (PVC)

Shelf Life

5 years from date of production

Storage Conditions

Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between +5 °C and +30 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Length

10.00 m (± 0.5 m)

Width

0.80 m (± 0.008)

Effective Thickness

Including texturised top surface:

2 mm (-0.1 mm / +0.2 mm)

Thickness of texturised layer:

0.40 mm

Mass per unit area

2.50 kg/m² (± 0.50 kg/m²)

(EN 1849-2)
System information

System Structure

The following products must be considered for use depending on roof design:

  • Sikaplan® PVC roof waterproofing membranes

Compatibility

Incompatible with bitumen
Technical Information

Tensile Strength

Longitudinal (MD)

900 N/mm²

Reaction to Fire

Class E

(EN 13501-1)

Diffusion Resistance to Water Vapour

Resistance factor, Method A, tested at +23 °C and 75 % r.h.

μ = 18 000

Application

Application Information

Ambient Air Temperature

Maximum

+60 °C

Minimum

-20 °C

Substrate Temperature

Maximum

+60 °C

Minimum

-30 °C
Application steps

SUBSTRATE PREPARATION

Substrate must be clean and dry.

APPLICATION

IMPORTANT

Application by trained personnel

The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.



IMPORTANT

Risk of damage due to extreme high or low temperatures

  1. Use of the Product is restricted to geographical locations with average monthly minimum temperatures above -50 °C.
  2. The permanent ambient temperature during use is +50 °C maximum.
  3. Observe the maximum and minimum temperatures of ancillary products.

Application below +5 °C

Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.

Note: Installation of ancillary products such as contact adhesives or cleaners is limited to temperatures above +5 °C. Refer to the corresponding Product Data Sheets.

Membrane application

  1. Roll out the Product.
  2. Cut the Product to the desired length and allow it to level out when placing in position.
  3. Leave a gap of about 2 cm between each section to allow water to drain.
  4. Weld the Product with hot air onto theSikaplan® roof waterproofing membrane.
