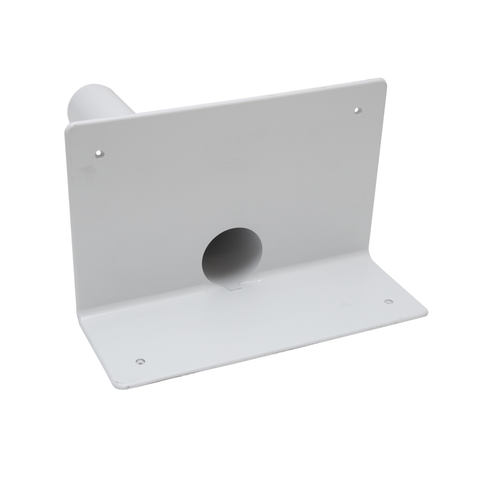

Sarnafil® T Scupper round

Sarnafil® T Scupper round

Prefabricated FPO roof drain

Sarnafil® T Scupper round is a rigid polyolefin prefabricated FPO (PP) injection moulded rainwater outlet for flat roofs used with Sika Sarnafil T/AT membranes which can be heat welded onto the drain.

  • Resistant to UV exposure
  • Membrane can be welded directly to the base plate
  • Easily applied
  • Hot air weldable
Enquire about this product
Product Data Sheet Show all documents

Usage

  • Rainwater outlet through the parapet for use with Sarnafil® T/AT membranes.
    Please note:
  • The product may only be used by experienced professionals
  • The product must not be used in regions with average monthly minimum temperatures lower than -50°C. Permanent ambient temperature during use must no be higher than +50°C.


Advantages

  • Resistant to UV exposure
  • Membrane can be welded directly to the base plate
  • Easily applied
  • Hot air weldable

Packaging

Depending on the order quantity and product size, the products are packaged on pallets or in cartons. Refer to the current price list for available packaging variations.

Colour

ColourBeige (nearest to RAL 7032)

Product Details

Product Information

Chemical Base

Polypropylene (PP)

Shelf Life

5 years from date of production

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between + 5 °C and + 30 °C. Always refer to packaging. Do not stack pallets of rolls or any other material on top during transport or storage.

Dimensions

Spigot

Based plate

Flow rates

Ø outside

length

inclination angle

90° angled B × H/L

Depth of water

55 mm / 75 mm

40 mm

450 mm

0°

250 mm × 150/100 mm

0,50 l/s 1)/ 0,75 l/s 1)

50 mm

450 mm

0°

250 mm × 150/100 mm

0,70 l/s 1) /1,00 l/s 1)

63 mm

465 mm

5°

320 mm × 200/120 mm

1,05 l/s / 1,40 l/s

75 mm

465 mm

5°

320 mm × 200/120 mm

1,25 l/s / 1,80l/s

90 mm

465 mm

5°

320 mm× 200/120 mm

1,45 l/s / 2,35 l/s

1) Calculated value

Thickness

4,0 mm

Surface

smooth

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

Refer to the relevant section in the Installation instructions: Sarnafil® T/AT.

IMPORTANT
Strictly follow installation procedures
Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
IMPORTANT
Application by trained personnel
The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.
IMPORTANT
Ventilation in confined spaces
Always ensure good ventilation when applying the Product in a confined space.
INSTALLATION PROCEDURE
Before applying the roof membrane, fasten the Product securely to the roof deck or parapet.
For mechanically fastened roofs, design the fasteners to resist the wind load forces at the project location. Reference the current installation instructions for Sarnafil® and Sikaplan® flat-roof waterproofing membranes.
Reference further documentation where applicable, such as relevant method statements, application manuals and installation or working instructions.
Application below +5 °C
Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations. Note: Installation of ancillary products such as contact adhesives or cleaners is limited to temperatures above +5 °C. Refer to the corresponding Product Data Sheets.
