Product Data Sheet Show all documents

Sarnabar® stainless steel

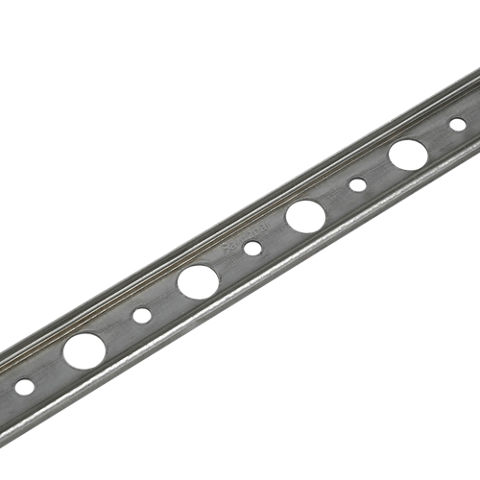

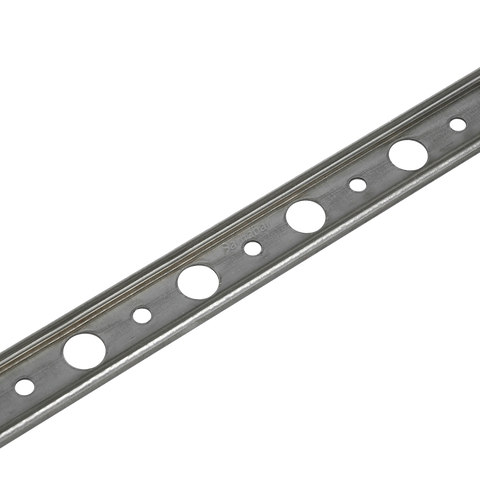

Sarnabar stainless steel is a heavy-duty, ‘U'-shaped, roll-formed stainless steel bar

Sarnabar® stainless steel is a heavy-duty, ‘U'-shaped, roll-formed stainless steel bar used to secure the waterproofing membrane at the base of walls, transitions, and penetrations.

  • Easy to install
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

Used with Sarnafasteners® to clamp membrane to the roof deck in Mechanically Attached, Ballasted, or Adhered roof systems.    Areas of Application
  • Hurricane Prone Areas
  • Additional Enhancement


Advantages

  • Easy to install

Packaging

  • Individual
  • 10 per bundle

Colour

Gray

Product Details

Product Information

Shelf Life

n/a

Storage Conditions

n/a

Dimensions

Length: 10' (3.05 m)
Width: 1'' (25 mm)
Thickness: 0.0785'' (2 mm)
Weight: 4.7 lb. (2.13 kg)
System information

System Structure

Sarnabars SS is normally mechanically attached through the waterproofing membraneas close to the base of the walls, curbs, transitions and penetrations as possible. The Sarnabar and fasteners effectively clamp the membrane to the substrate or the structural deck.
