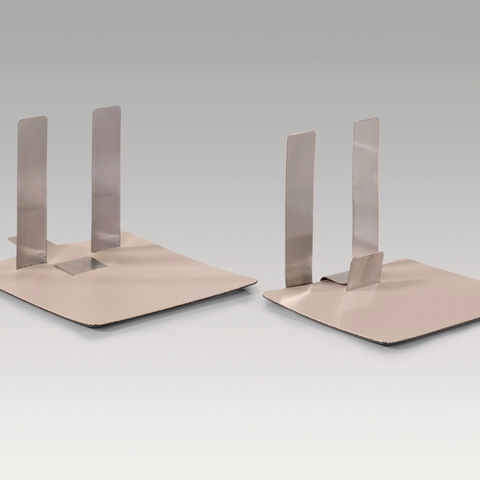

S-Gravel stop Bracket PVC

Prefabricated PVC ballasted Roof Gravelstop Bracket

The S-Gravel stop Bracket PVC is a prefabricated bracket to fasten the S-Gravelstop Profile to Sarnafil® PVC and Sikaplan® PVC roof waterproofing membranes by heat welding and without penetrating the membrane.

  • Sarnafil® PVC membrane on corrosion resistant stainless steel bracket
  • Suitable for ballasted roofing systems
  • Easy application without penetrating the membrane
  • Hot air weldable without use of open flames
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Find a Technical Advisor
Product Data Sheet Show all documents

Usage

S-Gravel stop Bracket PVC may only be used by experienced professionals.
  • Fastening the S-Gravelstip Profile to Sarnafil® PVC and Sikaplan® PVC roof waterproofing membranes with slopes of < 5°.


Advantages

  • Sarnafil® PVC membrane on corrosion resistant stainless steel bracket
  • Suitable for ballasted roofing systems
  • Easy application without penetrating the membrane
  • Hot air weldable without use of open flames
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)

Packaging

Plastic bag with 10 pieces

Colour

Colour Membrane: light grey
Colour Bracket: stainless steel

Product Details

Product Information

Chemical Base

Membrane: Polyvinyl chloride (PVC)
Bracket: stainless steel (1.4301)

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between + 5 °C and + 30 °C. Do not stack pallets on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Dimensions

Description

Length

Width

Height

S-Gravelstop Outside Bracket

150 mm

140 mm

120 mm

S-Gravelstop Inside Bracket

120 mm

140 mm

120 mm
System information

System Structure

The following products must be considered for use depending on roof design:

  • Sikaplan® PVC roof waterproofing membranes
  • Sarnafil® PVC roof waterproofing membranes

Ancillary products:

  • S-Gravelstop Profile

Application

Application Information

Ambient Air Temperature

- 20 °C min. / + 60 °C max.

Substrate Temperature

- 30 °C min. / + 60 °C max.
