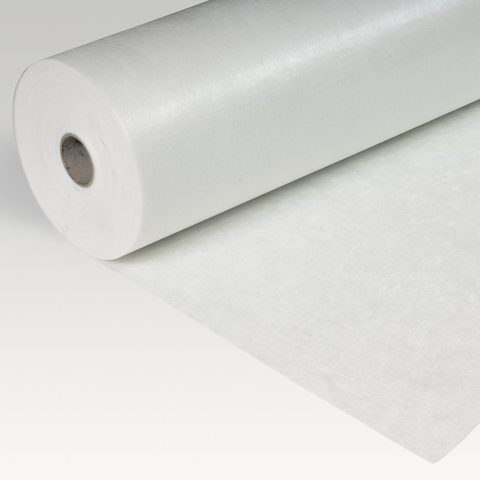

S-Glass Fleece-120

S-Glass Fleece-120

Glass fibre separation layer

S-Glass Fleece-120 is a glass fibre separation and fire protection layer.

  • Easily applied
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Enquire about this product
Product Data Sheet Show all documents

Usage

  • Separation and fire protection layer between Sarnafil® or Sikaplan® membranes and EPS/XPS insulation.


Advantages

  • Easily applied
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)

Packaging

Rolls wrapped individually in transparent PE-foil.

Length

100,00 m

Width

2,00 m

Weigh

24,00 kg

Colour

Surface

Structured

Colour

White

Product Details

Product Information

Chemical Base

Glass fibre

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +30 °C. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Length

100,00 m

Width

2,00 m (+/- 2 %)

Thickness

1,25 mm (+/- 10 %)

(EN 9073-2)

Mass per unit area

120 g/m2 (+/- 10 %)

(EN 29073-1)
System information

System Structure

The following products must be considered for use depending on roof design:

  • All types of Sarnafil® and Sikaplan® membranes
  • Sarnacol®-2170
  • Sarnacol® T-660
Technical Information

Tensile Strength

longitudinal≥  190 N/50 mm

transversal

≥ 100 N/50 mm

Reaction to Fire

A2

(EN 13501-1)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

- 30 °C min. / + 60 °C max.
Application steps

APPLICATION

S-Glass Fleece-120 is loose laid accordance with installation instructions: Sarnafil® and Sikaplan®.

If necessary S-Glass Fleece-120 can be spot bonded to the substrate with Sarnacol®-2170 or Sarnacol® T-660.

Adjoining sheets must overlap at least 50 mm.
