Sikafloor® MultiDur ES-56 ESD
Sikafloor® MultiDur ES-56 ESD is a smooth finish, epoxy ESD flooring system. The system is designed to dissipate electrostatic charges (ESD) and protect sensitive equipment in electrostatic protected areas (EPA).
- Provides reliable and long-lasting ESD protection
- Seamless surface requires minimal cleaning and maintenance
- Functional finish with outstanding appearance
- Low Airborne Molecular Contaminants (AMC) emissions
- Low VOC emissions
- Good resistance to specific chemicals
- Very good mechanical resistance
System Structure
Usage
Sikafloor® MultiDur ES-56 ESD is used in industrial buildings such as:- Pharmaceutical facilities
- Automotive facilities
- Electronic facilities and data centres
- The System may only be used by experienced professionals.
- The System may only be used for interior applications.
Advantages
- Provides reliable and long-lasting ESD protection
- Seamless surface requires minimal cleaning and maintenance
- Functional finish with outstanding appearance
- Low Airborne Molecular Contaminants (AMC) emissions
- Low VOC emissions
- Good resistance to specific chemicals
- Very good mechanical resistance
Colour
Available in the approximate colours RAL 1014, RAL 5009, RAL 5012, RAL 5024, RAL 6010, RAL 6021, RAL 6027, RAL 7001, RAL 7005, RAL 7011, RAL 7015, RAL 7016, RAL 7024, RAL 7030, RAL 7032, RAL 7034, RAL 7035, RAL 7036, RAL 7037, RAL 7038, RAL 7039, RAL 7040, RAL 7042, RAL 7043, RAL 7045, RAL 7047, RAL 9002, RAL 9005, NCS 3500-N
Appearance
Smooth, gloss finish
System Details
APPROVALS / STANDARDS
- Fire classification report, EN 13501-1, Ghent University, Report No. 20-1069-03
System Structure

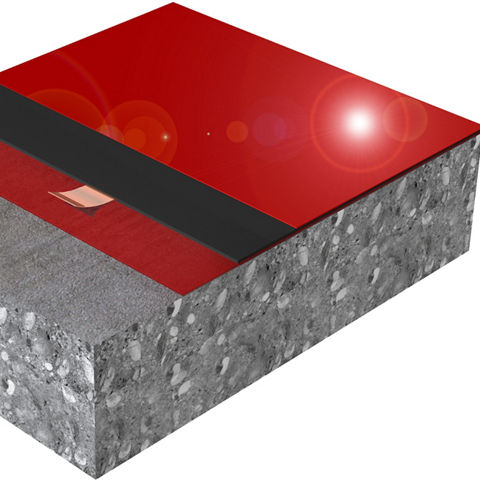

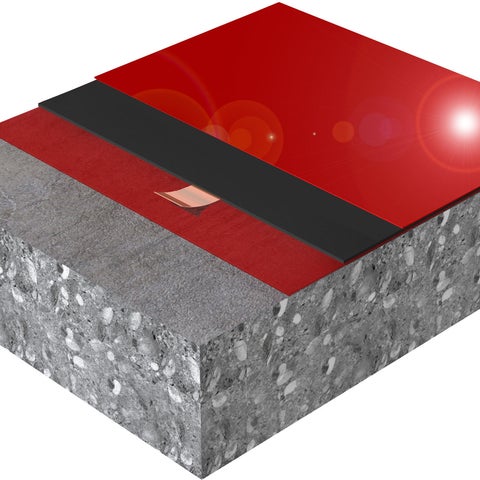

Sikafloor® MultiDur ES-56 ESD
| Layer | Product | |
| 1. | Primer | Sikafloor®-150 Sikafloor®-150 Plus Sikafloor®-151 Sikafloor®-156 Sikafloor®-161 Contact Sika Technical Service for information on choosing the right primer for your project. |
| 2. | Conductive primer | Sikafloor® Conductive Set Sikafloor®-220 W Conductive |
| 3. | Wearing layer | Sikafloor®-2350 ESD filled 20 % with Quartz sand (0.1–0.3 mm) |
Composition
Epoxy
Nominal thickness
1.5 mm to 2 mm
Tensile adhesion strength
≥ 1.5 MPa | (EN 1542) |
Reaction to Fire
Class Bfl-s1 | (EN 13501-1) |
Chemical Resistance
Laboratory-defined resistance to many individual chemicals. Before proceeding, contact Sika Technical Service for specific information.
Electrostatic Behaviour
| Resistance to ground | RG < 109 Ω |
| Typical average resistance to ground | RG < 105–106 Ω |
| Body voltage generation | < 100 V |
| System resistance | RG < 109 Ω |
ESD MEASUREMENT CONDITIONS AND SPECIFICATIONS
All measurement values for the system stated in the System Data Sheet (except those referring to proof statements) were measured using the following equipment and ambient conditions:
| Condition or Equipment | Specification |
| Size of ESD-footwear | 42 (EU) (UK: 8; US: 8.5) |
| Test person weight | 90 kg |
| Ambient conditions | +23 °C and 50 % relative humidity |
| Measuring device for measuring resistance to ground | Metriso 2000 or 3000 (Warmbier) or comparable |
| Surface resistance probe | Carbon Rubber electrode. Weight: 2.50 kg |
| Rubber pad hardness | Shore A (60 ±10) |
| Measuring device for measuring body voltage generation | Walking Test Kit WT 5000 (Warmbier) or comparable |
IMPORTANT
ESD footwear requirements
The ESD shoes used in the EPA must have a resistance of < 5 MOhm according to IEC 61340-4-3 at climate class 1 (12 % relative humidity and +23 °C). In order to achieve charges of < 30 volts of human body charge during the walking test (at 12 % relative humidity and +23 °C), we recommend using the following ESD shoes: Weeger ESD clog, art. 48512-30, www.schuh-weeger.de.
Note: Measurement results can be affected by ESD clothing, ambient conditions, measurement equipment, cleanliness of the floor and the test personnel.
Application
Ambient Air Temperature
Maximum | +30 °C |
Minimum | +15 °C |
Relative Air Humidity
Maximum | 80 % r.h. |
Dew Point
Refer to the individual Product Data Sheet.
Substrate Temperature
Maximum | +30 °C |
Minimum | +15 °C |
Substrate Moisture Content
Refer to the individual Product Data Sheet.
Waiting Time / Overcoating
For the waiting time to overcoating of the primer, refer to the individual Product Data Sheet.
Before applying Sikafloor®-2350 ESD on Sikafloor®-220 W Conductive, allow:
Temperature | Minimum | Maximum |
+15 °C | 26 hours | 7 days |
+20 °C | 17 hours | 5 days |
+30 °C | 12 hours | 4 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+10 °C | 48 hours | 3 days | 7 days |
+20 °C | 24 hours | 2 days | 4 days |
+30 °C | 16 hours | 36 hours | 3 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
Layer | Product | Consumption |
Primer | Sikafloor®-150 Sikafloor®-150 Plus Sikafloor®-151 Sikafloor®-156 Sikafloor®-161 | 1-2 × 0.3–0.5 kg/m² |
Conductive primer | Sikafloor® Conductive Set Sikafloor®-220 W Conductive | 1 earthing point per 200–300 m², minimum 2 per room. 0.08–0.10 kg/m² |
Wearing layer | Sikafloor®-2350 ESD filled with 20% quartz sand 0.1–0.3 mm | Maximum 2.5 kg/m² |
Note: With thinner layers, the chemical and mechanical resistance and the flow properties can be reduced.
APPLICATION
ESD CONDUCTIVITY MEASUREMENTS
Recommended number of conductivity measurements is specified in the following table:
| Ready applied area | Number of measurements |
| < 10 m² | 6 |
| ≥ 10 m² and < 100 m² | 10 to 20 |
| ≥ 100 m² and < 1000 m² | 50 |
| ≥ 1000 m² and < 5000 m² | 100 |
If the measurements yield values that are outside of the agreed specification, follow these steps:
- Carry out one additional measurement within a radius of approximately 30 cm around the original measuring point.
If the value of the new measurement meets the agreed specification, the original measurement can be disregarded.
If the value of the new measurement does not meet the agreed specification, repeat the measurement described above until the fulfilment of the requirements have been verified.
If the requirements cannot be verified, contact Sika Technical Services.
INSTALLATION OF EARTHING POINTS
Refer to Sika Method Statement: Sika Method Statement — Sikafloor® mixing and application
Number of earthing connections per room: Minimum of 2 earthing connections. The optimum number of earthing connections depends on the local conditions and must be specified on drawings or other contract documentation.
