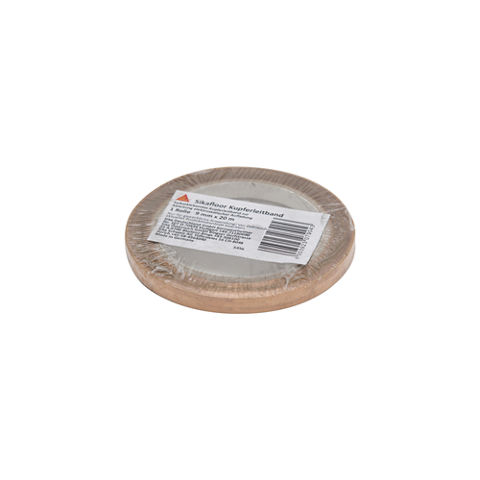

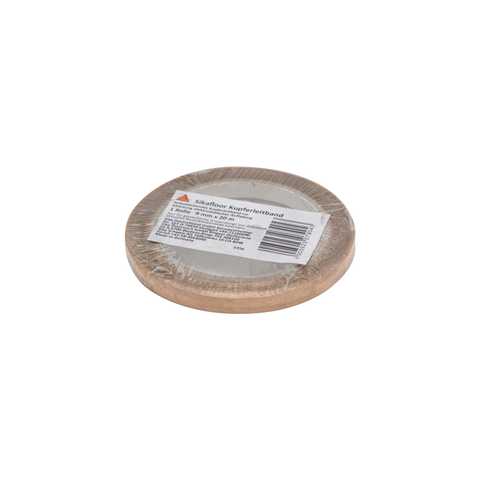

Sikafloor® Copper tape

Copper Foil Adhesive Tape For Electrostatic Conductive Floors

Sikafloor® Copper tape is a self-adhesive copper tape to connect electrostatic conductive floor systems to ground

  • Electrostatically conductive
  • Self-adhesive
  • Economical
Product Data Sheet Show all documents

Usage

  • Conductive tape to ground decorative and protective electrostatic conductive flooring systems used in automotive, electronics and pharmaceutical manufacturing, storage facilities and warehouses.


Advantages

  • Electrostatically conductive
  • Self-adhesive
  • Economical

Packaging

20 m rolls. Net weight 0,080 kg/roll.

Refer to current price list for packaging variations

Product Details

Product Information

Shelf Life

12 months from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.

Dimensions

Width

9,0 mm

Length

20 m

Thickness

~0,08–0,10 mm.

Application

Application steps

APPLICATION

Bond the self-adhesive copper tape onto the cured system primer and extend to the equipotential bonding point.

The copper tape connections must be carried out and approved by an electrical engineer and in accordance with any relevant local regulations.
