Sika Comfortfloor® Marble FX
Sika Comfortfloor® Marble FX is a polyurethane, elastic, self-smoothing, UV resistant, marble effect flooring system and is part of the Sika Comfortfloor® decorative flooring range. The system provides a soft, comfortable, hard wearing, seamless, low maintenance, smooth matt surface finish. Varying thickness’s can be achieved from 2.5–3.0 mm. Internal use.
- Optional decorative effects possible
- Soft underfoot
- Comfortable
- Seamless
- Low maintenance
- Slip resistant
- Odourless
- Good resistance to fire
- Low VOC emissions
- Smooth matt finish
- Good mechanical and abrasion resistance
- Easy application
- Easy cleanability
Usage
- Healthcare – Medical sector
- Education - Schools and Universities
- Leisure & Culture - Museums and Libraries
- Retail, Commercial & Public Buildings
- Residential, showrooms, entrance halls, lobbies, open-plan offices
Advantages
- Optional decorative effects possible
- Soft underfoot
- Comfortable
- Seamless
- Low maintenance
- Slip resistant
- Odourless
- Good resistance to fire
- Low VOC emissions
- Smooth matt finish
- Good mechanical and abrasion resistance
- Easy application
- Easy cleanability
Packaging
Refer to the individual Product Data Sheets
Colour
Available in many colours. Refer to the the Sika® Comfortfloor Colour Chart.
Appearance
Smooth, matt finish
System Details
ENVIRONMENTAL INFORMATION
- IBU Environmental Product Declaration (EPD) available - Sikafloor®-3000 FX, Sikafloor®-306 W
- VOC emission certificate according to AgBB und DIBt approval requirements, Certificate No. 392-2017-00147501_D_DE_02
- Class A+ according to French Regulation on VOC emissions
APPROVALS / STANDARDS
- CE Marking and Declaration of Performance to EN 1504-2 - Surface protection product for concrete - Coating - Sikafloor®-156, Sikafloor®-161
- CE Marking and Declaration of Performance to EN 13813 - Resin screed material for internal use in buildings - Sikafloor®-156, Sikafloor®-161, Sikafloor®-3000 FX, Sikafloor®-306 W
- Resilient floor covering EN 425:2002, Sika Comfortfloor® Marble FX , TFI, Test report No. 470537-01
- Cleanroom Suitable Material ISO 846, Sika Comfortfloor® Decorative, Fraunhofer IPA, Test report No. SI 1008-533
- Fire Behaviour EN 9239-1, Sika Comfortfloor® PS-24, Universiteit Gent Belgium, Test report No. 14-529
- Impact Sound Reduction EN 140-8, Sika Comfortfloor® / Comfortfloor® Pro / Comfortfloor® Decorative / Comfortfloor® Decorative Pro, Gottfried & Rolof Institut Germany, Test report No. 102-B-08

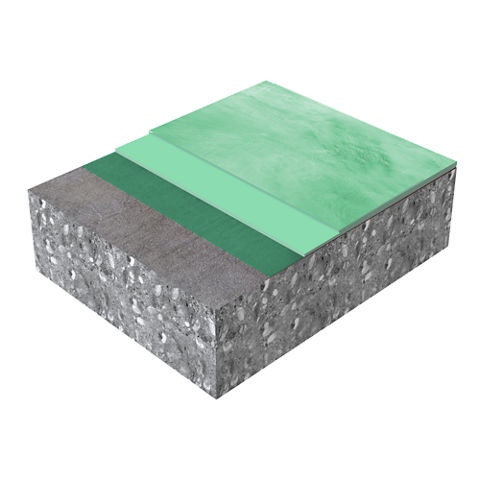

System Structure
Sika Comfortfloor® Marble FX
Layer | Product |
1. Primer | Sikafloor®-150/-151 |
2. Wearing layer | Sikafloor®-3000 FX |
3. Seal /top coat | Sikafloor®-306 W |
Optional Seal / top coat: Sikafloor®-304 W. Refer to the Product Data Sheet, approvals and certification.
Composition
Polyurethane
Nominal Thickness
~2.5–3.0 mm
Volatile organic compound (VOC) content
Refer to sustainability section
Shelf Life
Refer to the individual Product Data Sheets
Storage Conditions
Refer to the individual Product Data Sheets
Shore A Hardness
~84 (14 days / +23 °C) | (DIN 53505) |
Resistance to Wearing
Wearing group P | (EN 660-2:1999) |
Resistance to moving furniture
No damage | (EN 424:2002) |
Castor chair resistance
No damage (25 000 cycles) | (EN 425:1994) |
Resistance to Impact
Class I (~4 N/m) | (ISO 6272) |
Indentation
0,02 mm | (EN 433:1994) |
Tensile Strength
~8.0 N/mm² (14 days / +23 °C) | (DIN 53504) |
Tensile Adhesion Strength
> 1.5 N/mm2 (failure in concrete) | (EN 13892-8) |
Tear Strength
~18 N/mm (14 days/+23 °C/Base coat) | (ISO 34-1) |
Reaction to Fire
Bfl-s1 | (EN 13501-1) |
Resistance to Stubbed Cigarettes
Class 4 | (EN 1399) |
Chemical Resistance
Sikafloor®-306 W provides the chemical resistance. Refer to Product Data Sheet.
USGBC LEED Rating
Conforms Section EQ (Indoor Environmental Quality), Credit 4.2 Low-Emitting Materials Paints and Coatings. Calculated VOC content ≤ 50 g/l
Sound Insulation
2 dB | (EN ISO 140-8) |
Skid / Slip Resistance
R10/R11 | (DIN 51130) |
Application
Product Temperature
+15 °C min. / +30 °C max.
Ambient Air Temperature
+15 °C min. / +30 °C max.
Relative Air Humidity
80 % max.
Dew Point
Beware of condensation.
The substrate and uncured applied floor material must be at least +3 °C above dew point to reduce the risk of condensation or blooming on the surface of the applied product.
Substrate Temperature
+15 °C min. / +30 °C max.
Substrate Moisture Content
≤ 4 % parts by weight
Test method: Sika®-Tramex meter, CM - measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+15 °C | ~30 hours | ~48 hours | ~6 days |
+20 °C | ~16 hours | ~24 hours | ~4 days |
+30 °C | ~12 hours | ~18 hours | ~3 days |
Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Consumption
Layer | Product | Consumption |
1. Primer | Sikafloor®-150/-151 | ~0.3–0.5 kg/m²/layer |
2. Wearing layer | Sikafloor®-3000 FX | ~2.8 kg/m² (~2 mm) |
3. Seal / top coat | Sikafloor®-306 W | ~0.13 kg/m²/layer |
These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level and wastage etc.
CLEANING
Refer to Information Manual: Sikafloor®-Cleaning Regime
