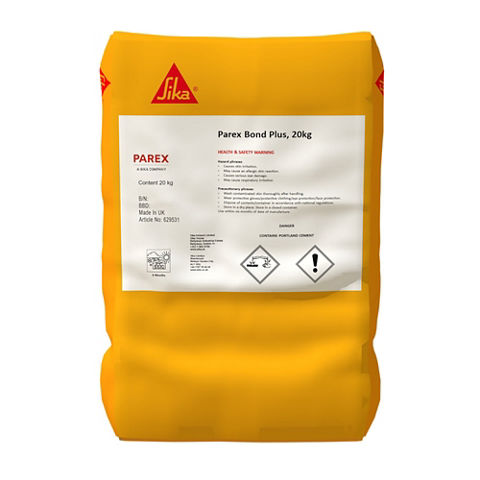

Parex Bond Plus Mortar

Complies with the relevant parts of BS 7533

Cementitious

6 Months

Store properly in dry conditions in undamaged and unopened original sealed packaging

1800 kg/m³

Bedding mortar

Parex Fine bedding Concrete (FBC)

Bond Coat

Parex Bond Plus Mortar

Pointing mortar

Parex Granatech

Parex Granatech 40 fine

Parex Settpoint

>2N/mm² (Depending on substrate)

3.5-4.0 litres of water per 20kg bag

1mm min / 2mm max

+5°C min / +35°C max

+5°C min / +35°C max

~45 minutes @ 20°C

~0.7kg/m2/mm

~13.25 litres of mixed material, per 20 kg bag

Pour the required quantity of clean water in to a suitable, clean mixing vessel. Slowly add the Parex Bond Plus Mortar whilst continuously mixing, using a slow speed, high torque drill and mortar stirrer. Continuously mix until a uniform mix is achieve, approximately 2 mins.

Prime the prepared substrate and the under side of the paving units with the Bond Plus Mortar using a brush or trowel so the total applied thickness is 1-2mm.

Placing of Parex Fine Bedding Concrete and Paving

Apply the mixed Parex fine bedding concrete (FBC) to the primed substrate before the priming coat has dried. Compact the Parex fine bedding concrete (FBC) to ensure good contact with the underlying primed surface. Prime the back of the paving units being used with Parex Bond Plus Mortar.
Place the units onto the wet Parex fine bedding concrete (FBC) and adjust the levels as required. Lay the paving unit into the Parex fine bedding concrete (FBC) immediately after priming, tapping it firmly to ensure the underlying Parex fine bedding concrete (FBC) is fully compacted.
Application thickness of the Parex fine bedding concrete (FBC) should be in the range of 30mm to 75mm. In situations where thick layers are required to be built up, the surface of the under layer should be left with a wood float finish and should be scored. Subsequent Parex Bond Plus Mortar and Parex fine bedding concrete (FBC) layers may be applied as soon as the initial layer is firm enough not to distort under the new work. Parex Bond Plus Mortar may be applied at temperatures between 5°C and 35°C on a rising thermometer.

In temperate ambient conditions, no special curing is required. In severe drying conditions of high temperatures and high wind, the paved surface should be sprayed with water to assist with temperature control of the paving surface and provide water for additional curing of the FBC.

Clean all tools and application equipment with water immediately after use. Hardened/cured material can only be mechanically removed.
