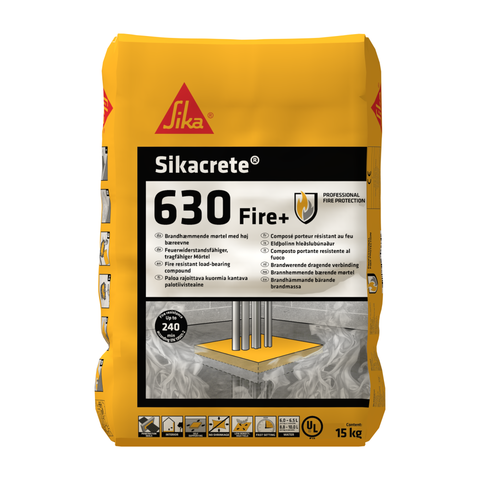

Sikacrete®-630 Fire+

Sikacrete®-630 Fire+

Fire resistant load bearing penetration compound

Sikacrete®-630 Fire+ is a fire resistant gypsum-based compound for load bearing penetration seals in fire compartment floors.

  • Up to 4 hours fire resistance.
  • 1-part easy to mix, easy to apply.
  • Pourable and trowelable application.
  • Load-bearing and self-supporting in floor penetrations.
  • Very fast setting, no loss of volume.
  • Provides acoustic insulation.

Send us an enquiry
Product Data Sheet Show all documents

Usage

  • Restores the fire resistance performance of a floor which incorporates a large variety of service penetrations such as cables, cable trays, metal pipes and plastic pipes.
  • Can be combined with SikaSeal®-629 Fire Wrap.

Advantages

  • Up to 4 hours fire resistance.
  • 1-part easy to mix, easy to apply.
  • Pourable and trowelable application.
  • Load-bearing and self-supporting in floor penetrations.
  • Very fast setting, no loss of volume.
  • Provides acoustic insulation.


Packaging

15 kg bag

Colour

Light grey powder

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

  • VOC emission classification GEV-EMICODE EC 1PLUS .
  • Conformity with LEED v4 EQc 2: Low-Emitting Materials.

APPROVALS / STANDARDS

  • CE Marking and Declaration of Performance to European Technical Assessment ETA 21/1033, based on EAD 350454-00-1104:2017 - Fire stopping and fire sealing products, penetration seals.
  • Fire Resistance EN 13501-2, UL-EU, Certificate No.UL-EU-01217-CPR.
Product Information

Chemical Base

Gypsum based compound

Shelf Life

12 months from the date of production

Storage Conditions

The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +25 °C.
Always refer to packaging.


Technical Information

Service Temperature

0 °C min. / +70 °C max.

Resistance to fire

Refer to ‘Approvals / Certificates’ or contact Sika Technical Services for specific information.

Application

Application Information

Mixing Ratio

For pourable consistency

8.8 L to 10.0 L of water per 15 kg bag

For trowelable consistency

6.0 L to 6.5 L of water per 15 kg bag

Layer Thickness

Refer to ‘Approvals / Certificates’ or contact Sika Technical Services for specific information.

For load-bearing applications, layer thickness must be ≥ 100 mm.

Ambient Air Temperature

+5 °C min. / +40 °C max.

Substrate Temperature

+5 °C min. / +40 °C max., min. +3 °C above dew point temperature

Pot Life

~15 min (+23 °C / 50 % r.h.)
Consumption

Consumption

~3.5 bags per m2 at 50 mm depth.

~7 bags per m2 at 100 mm depth

These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level or wastage etc.
Application steps

MIXING

IMPORTANT

The consistency must be checked after every mix.

Note: Mix product with mechanical paddle or manually.

Note: Mix only enough material sufficient for use within the recommended pot life.

  1. Pour the minimum recommended clean water quantity into a suitable mixing container/equipment.
  2. While stirring slowly, add the powder to the water.
  3. Mix thoroughly for at least 2 minutes adding water if necessary, to the maximum specified amount and adjust to the required consistency to achieve a smooth consistent mix.

APPLICATION

Reference must be made to the relevant Sika Application Manual or contact Sika Technical Services for additional information.

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use. Hardened material can only be removed mechanically.
